Tektronix Arbitrary/Function Generators Series AFG1000

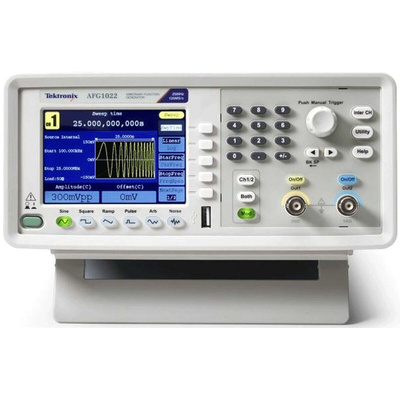

The Tektronix AFG1022 ( 855-5078 ) and AFG1062 ( 898-6858 ) entry-level arbitrary/function generators are designed to appeal to educational institutions wanting to fit out their laboratories with modern, flexible test instrumentation capable of high performance at an attractive price. Applications include electrical and electronics experiments, communications experiments, sensor simulation and functional test. Key performance specifications include dual-channel, 25MHz or 60MHz bandwidth with 1mVpp to 10Vpp output, 14-bit vertical resolution and 1μHz frequency resolution. The models offer 50 built-in standard function and arbitrary waveforms with continuous, modulation, sweep and burst modes to cover almost all test requirements in basic education laboratories. They provide a 125MS/s (AFG1022) or 300Ms/s (AFG1062) sample rate along with 64MB of built-in non-volatile memory and USB memory expansion for user-defined waveforms. A built-in 200MHz counter with 6-digit resolution offers an easy and precise way of performing frequency, period, pulse width and duty cycle measurements. The models incorporate an intuitive user interface with a 3.95 inch TFT colour display, shortcut buttons and rotary knob for quick setting adjustments. The compact form saves valuable bench space.

125 MS/s sampling rate and 14-bit vertical resolution enable great signal fidelity
1 mVp-p to 10 Vp-p output amplitude over the whole frequency range
Intuitive user interface shortens the learning curve for students and other users
2 to 8,192-point length of memory for user-defined arbitrary waveforms
64-MByte internal non-volatile memory for arbitrary waveform storage

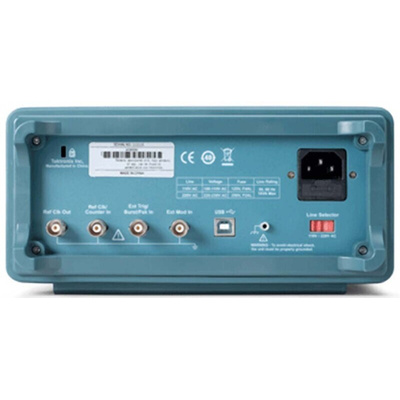

Standard USB host/device for memory expansion and remote control

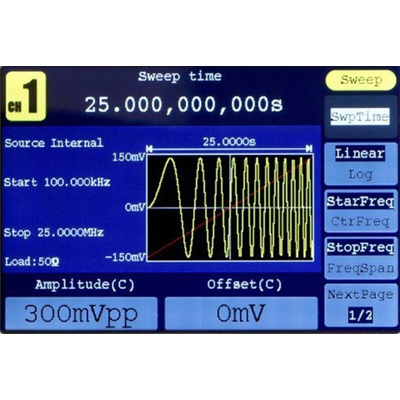

Continuous, sweeping, burst and modulation modes
Built-in 200 MHz counter with 6-digit resolution
Menu and online help in English and Simplified Chinese
Compact form factor for stacking on other bench instruments to save valuable bench space
Free ArbExpress makes user defined waveforms editing extremely easy
Compatible with TekSmartLab™ for easy teaching and learning

Supplied with

USB cable, BNC cable, power cord, cartridge fuse (x2), documentation CD, certificate of calibration

Arbitrary Function Generator AFG1022 Data Sheet
