FLK-789FC-MA/KIT, Fluke 789FC Loop Calibrator, - RS Calibration, Калибратор токовой петли

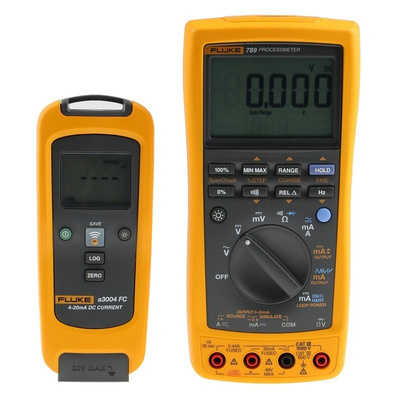

Fluke ProcessMeter Kit

The Fluke ProcessMeter kit is the ultimate single compact troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter. It has a current measuring range from 0A to 1A AC or DC and current sourcing range from 0mA to2mA or 4mA to 20mA. By equipping this device with a temperature measurement module and the wireless data logging capabilities of Fluke Connect app, FC connector with ShareLive video call, process technicians can do a lot more while carrying a lot less. With Fluke Connect mobile app and desktop software compatibility, technicians can wirelessly monitor, log and share data from the field with their team anytime and from anywhere. And with its built-in, selectable 250ohms HART resistor, it eliminates the need to carry a separate resistor with you.

Features and Benefits

•
Unique new wireless measurement logging capability
• Temperature measurement between -200°C and 1372°C using the t3000 FC
• 24V Loop power supply
• HART mode setting with loop power (adds 250ohms resistor)
• 100% larger dual display
• 1200ohms drive capability on mA source
• Enhanced backlight with two brightness settings
• 0% to 100% mA span check buttons to toggle between 4mA and 20mA
• Infrared I/O serial port compatible with
• FlukeView forms software version 2.1
• Externally accessible fuses for easy replacement
• Diode test and continuity beeper
• Simultaneous mA and% of scale readout
• Externally accessible battery for easy battery changes

Applications

•
Process control automation
• Manufacturing
• Instrumentation

Certifications

•
CSA certified
• CE certified
• IEC 61010
