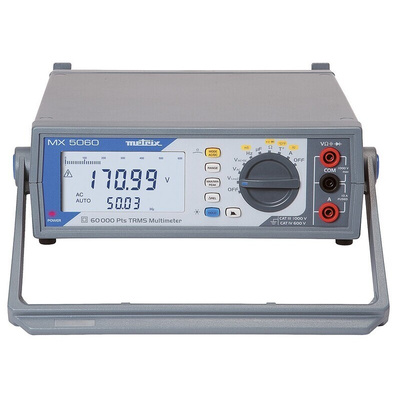

MX5060 Bench Digital Multimeter

The MX 5060 bench- top digital multimeter can be used for TRMS AC + DC measurements. The 60000 count double transflective backlit LCD screen with bargraph and central zero offers instantaneous display of the signal variations. To ensure good measurement stability on variable speed drives, the MX 5060 bench multimeter is equipped with a 300 Hz PWM filter.

Simple and effective for your laboratories

• Error-free current measurement up to 10 A thanks to the single A terminal
• TRMS AC+DC and up to 60,000 counts displayed with 100 kHz bandwidth
• Measurement stability with the VLowZ calibre which eliminates spurious voltages
• Measurement stability on variable speed drives with the 300 Hz PWM filter
• Recording and monitoring of the signed Min, Max and Peak values
• Compliance with IEC 61010 1000 V CAT III double insulation, optimized safety

Key features of the MX5060 Bench Digital Multimeter

• DC, AC and AC + DC current measurement
• DC, AC and AC + DC voltage measurement, as well as peak voltages
• Resistance up to 60 MΩ and continuity
• RMS values
• μV resolution
• Diode test
• Capacitance from 6 nF to 60 mF
• DC, AC and AC+DC voltage measurement, as well as peak voltages
• Frequency up to 60 kHz
• 60 mV calibre
• VDC accuracy: 0.05 % R
• Temperature (K thermocouple) from -200 °C to +1200 °C
• USB communication – SCPI commands

Typical applications for the MX5060 Bench Digital Multimeter

• Electrical engineering and electronics sector

What’s included?

• EU Mains power cable
• 1.5 m red straight/straight cable
• 1.5 m black straight/straight cable
• Red CAT IV 1 kV test probe, black CAT IV 1 kV test probe
• Operating manual on CD
• Start-up guide on paper and remote programming manual.

Standards

IEC 61010, 1000 V CAT III

Supplied with

EU Mains power cable, 1.5 m red straight/straight cable, 1.5 m black straight/straight cable, red CAT IV 1 kV test probe, black CAT IV 1 kV test probe, operating manual on CD, start-up guide on paper and remote programming manual.
