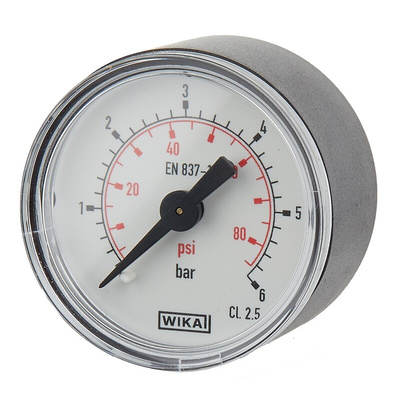

RS PRO Analogue Pressure Gauge 6bar Back Entry, RS Calibration, 0bar min., Манометр

RS PRO Analogue Positive Pressure Gauge Back Entry 6 bar, Connection Size R 1/8

This analogue positive pressure gauge from the RS PRO range is a precise and reliable solution for checking the pressure of liquids or gases. It offers measurements with a best accuracy of ± 1.6%.

This pressure gauge makes use of a Bourdon tube system, measuring pressure through the deformation of an internal coil made of a copper alloy. This means that it has no electrical components and requires very little maintenance. It's a highly versatile instrument that can operate effectively at temperatures ranging from -40°C to +60°C. It can measure pressures between 0 bar and 6 bar with the option to display measurements in PSI. Its plastic case makes it lightweight and easily portable.

This analogue positive pressure gauge is suitable for small capacity compressors, as well as heating and air-conditioning equipment. It's also used for applications in the medical engineering field.

Features and Benefits

• Back entry analogue positive pressure gauge
• Pressure measurement range of 0 bar to 6 bar
• Dual-scale gauge with measurements in bar and PSI
• Outside gauge diameter of 40 mm

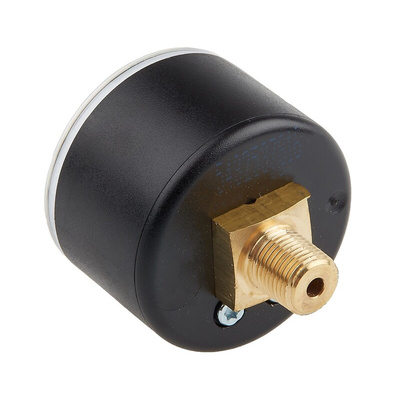

• Connection size of R 1/8
• Best accuracy of ± 1.6 %
• Case made of plastic
• Minimum operating temperature of -40°C
• Maximum operating temperature of +60°C

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Gauges

Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.
