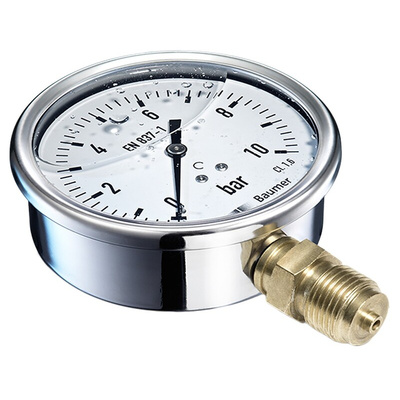

Bourdon Bottom Entry Pressure Gauge 10bar UKAS Calibration, MIT5D32B22, Манометр

Baumer MIT Pressure Gauge - Class 2.5

The gauges have an aluminium alloy dial with easy to read black graduations and number on a white background. Gauges are manufactured to conform to EN 837-1 and are available with a bottom or back connection.

Features and benefits

• Black balanced aluminium pointer
• IP54 (IP65 for 100 mm dia.) rated
• Cupreous metal Bourdon tube
• Welded tube connection assembly
• 14 mm Hexagonal (21 mm for 100 mm dia.) brass connection
• Class 2.5
• 63 mm and 100 mm gauge diameters available

Applications

• Compressors
• Diesel engines
• Agricultural equipment
• Public works
• Machine tools
• Hydraulic systems
• Pumps

Analogue Pressure Gauges

This range of Bourdon tube pressure gauges has stainless steel cases, copper alloy movement, non-splintering clear PMMA plastic windows and the gauges are intended for use in adverse service conditions where pulsation or vibration exists. Their operating temperature range is -20°C to +60°C. They are suitable for gaseous or liquid media that will not obstruct the pressure system or attack copper alloy parts. Accuracy class is DIN 16 005. Scales are in both bar and psi. All gauges have maximum continuous pressure of full scale and maximum over pressure of 1.3 x full scale.
