Norgren Analogue Pressure Gauge 6bar Back Entry, 18-013-012, RS Calibration, 0bar min., Манометр

Norgren Pressure Gauges

Norgren pressure gauges are designed on the bourdon tube operating principle. These gauges can be used within small capacity compressors, medical engineering, heating and Air Conditioning applications. Ideal for pneumatic applications. These gauges are highly reliable and work well monitoring the pressures of gaseous and liquid media (except highly viscous media).

Features and Benefits

• Bourdon tube operating principle

• Dual scale - bar and psi

• Ambient/Media operating temperature -40 to +65°C

• Accuracy ±2.5% FSD

• Rear connection with BSP tapered thread

• Conforms to BS EN 837-1:1998

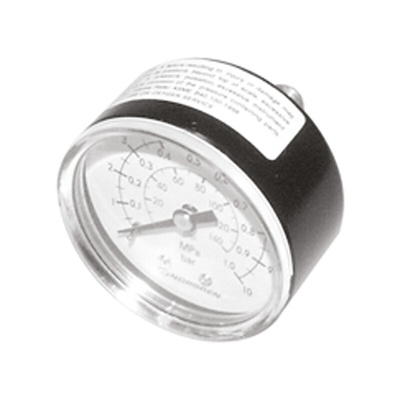

IMI Norgren Analogue Positive Pressure Gauge, Centre-Back Connection, 50mm Diameter Dial Face - 18-013-012

Monitor your compressed air system or pneumatic network with this pressure gauge from IMI Norgren. The analogue unit uses a Bourdon tube to display pressures between 0 and 6 bar, so it’s practical for use in low-pressure applications. A hardwearing PA66 body resists damage from abrasion and impact, while the PC lens is durable but transparent, so you can read its 50mm dial face clearly. Thanks to a robust brass connector on the centre back, this is a safe choice for use with compressed air or gasses, oils and any liquids that don’t corrode copper alloys.

Features & Benefits

• Dual scale shows readings in psi and bar for versatility
• Accuracy of 2.5% of full scale means you get precise readings
• Tapered R1/8 NPT thread on the connector creates an airtight seal with no need for thread sealant

Applications

• Compressors
• Medical equipment
• HVAC systems

What temperatures can I use this pressure gauge at?

This pressure gauge operates safely at temperatures between -40°C and +65°C and supports media across this same range. Make sure your air supply is dry to avoid ice formation below +2°C.

Gauges

Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts.

Pressure gauges Data Sheet
