3425-6650, 3M 50-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 3000 Series 2.54 x 2.54 mm Cable Mount IDC Socket Connectors

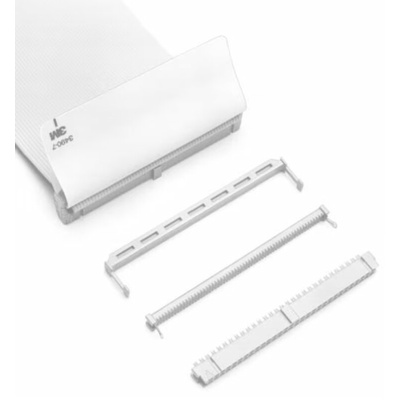

3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch. These IDC cable sockets accept 26 AWG and 28 AWG solid and stranded 1.27 mm pitch flat ribbon cable or discrete wire. The use of IDC contacts eliminates the need for prior cable preparation and stripping and provides a quick and simple interconnection system for mass termination. The contacts are made from beryllium copper which has a high resistance to corrosion, good wear resistance and better electrical conductivity than brass or bronze. The housings of these 3000 series IDC sockets feature dual slot military polarization to aid accurate mating with the header connector. The design of these 3000 series IDC sockets sets the standard for MIL spec and IEC standardization. These 3000 series ribbon cable sockets feature positive locking metal 'J' clips that ensure the cover of the connector is securely retained. The covers have a transfer adhesive on them that holds the cover onto the ribbon cable for precise alignment between the connector and the cables. This feature also results helps with the production of high yield terminations. A pull tab is available separately which is attached to the socket using a strip of adhesive. The pull tab is used to reduce stress on the cable terminations when the socket connector is unplugged from the mated header. A keying plug is also available which is plugged into a socket contact so that the male pin cannot enter it.

Features & Benefits

IDC contacts for quick and easy mass termination
No cable preparation required
Robust and reliable beryllium copper contacts

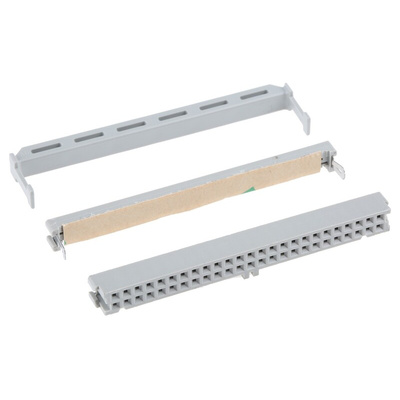

Positive locking metal ’J’ clips for secure cover retention
Transfer adhesive on covers for precise cable to connector alignment

Product Application Information

These 3000 series wire mount IDC sockets are used in wire to board or internal wiring applications. Applications include factory and automation, test and instrumentation, medical, communications and networking and computers and peripherals

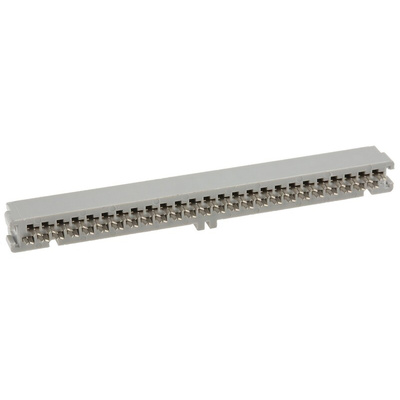

3M IDC Connector, Inline Free-Hanging PCB Mounting Style, Receptacle Connector Type - 3000 Series - 3425-6650

Terminate your ribbon cables in a flash with this 3M female IDC connector. Set-up is quick and simple – just insert your cable end and clip the unit together so the 50 built-in contacts pierce the insulating layer. Thanks to a broad operating temperature range between -55°C and +105°C, this is a robust option that's ideal for use in harsh work areas. Its glass-filled polyester insulation is durable, to ensure your connections stay strong.

Features & Benefits

• Withstand voltage rating of 1,000V shows it's safe to use in powerful electrical systems
• Integrated strain relief to prevent damage at terminal points
• PBT insulation is impact-resistant for protection from bumps and scrapes

Applications

• Telecommunications systems
• Computer networks
• Transportation sector

What wire sizes is this unit compatible with?

This IDC connector supports solid and stranded wires in a broad cross-section range between 0.08 and 0.14mm², so it's a versatile piece of kit.

3M 3000 Series Connector Data Sheet
