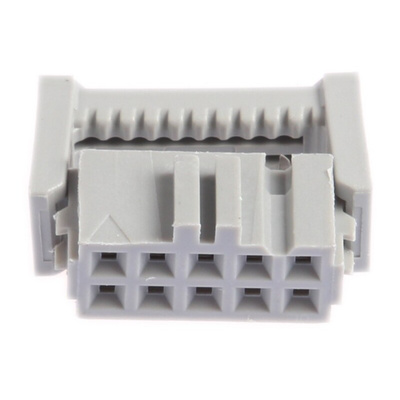

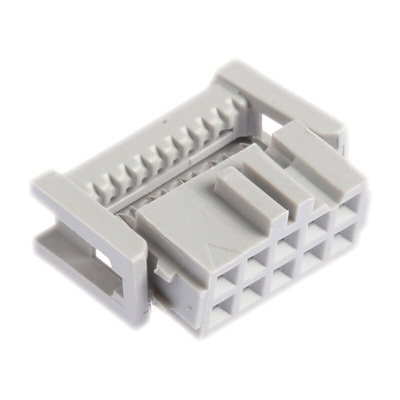

89110-0101, 3M 10-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets

From 3M, the 891 Series ribbon cable connectors feature military polarization and centre bumps. They terminate faster than two-piece sockets and their sword packaging makes easy loading of manual and semi-automatic assembly equipment.

These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled.
Strain reliefs (192-7530 typically) are available separately

Features and Benefits

• Preassembled, terminates faster than two-piece sockets
• Sword packaging makes easy loading of manual and semi-automatic assembly equipment
• Bumps prevent premature latch locking during shipment
• Optional double-sided adhesive pull tab for easy unplugging
• Double-recessed cover for cable terminating from either side eliminates need for single-recessed cover connectors

Applications

Ribbon cables are known for their space saving and high data transfer capabilities. They are often used to connect internal computer peripherals, and less frequently for external connections. They are known for being well suited to mass termination with IDC (insulation displacement connectors.) This quick and practical termination solution means that ribbon cabling is a common standard in electronics and computing.

Why choose 3M?

3M are a reliable name in computing and electronic connection. Combined with RS Components excellent customer service, 3M provides a range of specialist connectivity solutions for a variety of industries and applications.

3M IDC Connector, 1.25A Current Rating, 1kV AC Voltage Rating - 891 Series - 89110-0101

Quickly connect your internal computer peripherals with this IDC connector from 3M. It's an insulation-displacement type, so attaching it to a ribbon cable is easy as there's no need to strip the wires. As the socket comes pre-assembled, termination is quick. Its double-recessed covers let you conveniently attach wires from either side of the unit. Gold-plated contacts help to ensure optimum electrical flow and also resist corrosion to deliver an extended service life.

• Robust PBT housing resists temperatures up to +105°C
• Sword packaging lets you easily load manual and semi-automatic assembly equipment
• Centre bumps help to stop the connector prematurely locking during shipping
• Meets UL 94V-0 flammability standards, so is self-extinguishing for safety

Applications

• Computer drives
• Smart phones and laptops
• Industrial control systems

Is this connector insulated?

Yes, this connector's PBT housing provides insulation to help prevent electric shocks.
