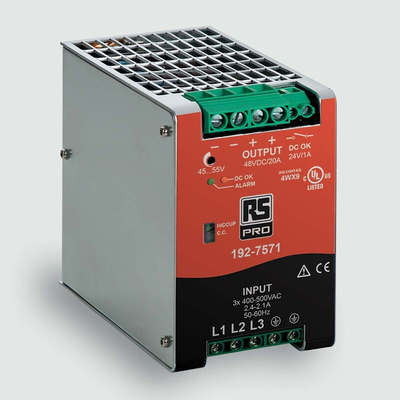

RS PRO Switch Mode DIN Rail Power Supply, AC 340–550V ac, dc Input, 45-55V dc dc Output, 20A Output, 960W

RS PRO 960W Compact 3 Phase DIN Rail Power Supply (TS35)

A highly efficient and compact 3 phase power supply with Power Fact Correction (PFC) . Designed for mounting on 35mm DIN rails the power supply is simple to install and integrate into existing set ups and is connected by screw terminals.
A regulated primary switch mode power supply with a N/O contact arrangement and a wide input range of 340 – 550 V ac.
The DIN rail power supply features short circuit and over voltage protection contained within a robust Aluminium housing fit for industrial use.

Features and Benefits

3 phase power supply
Switch mode
Power Factor Correction (PFC)
Wide input range of AC 340 - 550 V
48V adjustable output
Regulated
Overvoltage protection
Short circuit protection
Aluminium housing
TS35 DIN rail mounting
Screw terminals
Dimensions of 80 x 127 x 147.5mm

Standards and Approvals: IEC 950,EN 60950, EN 61000-4-2/3/4/5/6/11, EN 61000-6-2, EN 61000-6-4, EN 50178, EN 61558, EN 50081-1, EN 50082-2, EN 55022 Class B

What is a DIN Rail Power Supply?

A DIN rail mounting power supply is also known as an electric power converter. A convenient option when it comes to powering DC operated equipment. The power supply is mounted on a standard-sized metal strip (35 mm) to which electronic devices such as circuit breakers, relays, motor starters, and PLCs can be mounted enabling the assembly of very compact systems.

Why would you need these power supplies?

RS PRO DIN power supplies are the ideal solution for critical applications. These compact devices present excellent durability and safety when it comes to powering your products and includes features such as adjustable outputs used to compensate for voltage drop.

Why RS PRO?

RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
