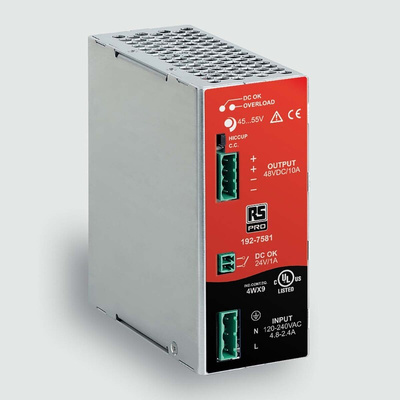

RS PRO Switch Mode DIN Rail Power Supply, AC 90–264V ac, dc Input, 45-55V dc dc Output, 10A Output, 480W

RS PRO Primary Switch-mode Power Supply – Single-Phase

Our range of DIN rail power supplies is growing, we now have a new range of single-phase power supplies that are highly efficient and extremely compact. These RS PRO power supplies are DIN rail mounted, useful when space is at a premium and available with switch-modes, screw-in or push in connector variations plus a range of power ratings from 120 W to 480 W.

What is a DIN Rail Power Supply?

A DIN rail mounting power supply is also known as an electric power converter. A convenient option when it comes to powering DC operated equipment. The power supply is mounted on a standard-sized metal strip (35 mm) to which electronic devices such as circuit breakers, relays, motor starters, and PLCs can be mounted enabling the assembly of very compact systems.

Why would you need these power supplies?

RS PRO DIN power supplies are the ideal solution for critical applications. These compact devices present excellent durability and safety when it comes to powering your products and includes features such as adjustable outputs used to compensate for voltage drop.

Features and Benefits

• Primary switch-mode power supply, PFC, Single-phase - RS stock no: 192-7581
• Input: AC 90–264 V, DC 110–345 V
• Output: 48 V, adjustable output voltage range (DC 45–55 V)
• 20 A
• Properties High efficiency and extremely compact dimensions
• Only 56 mm wide aluminium housing
• Active PFC (Power factor correction)
• Overload 150 %
• Constant current or hiccup mode limitation (in case of overload), user definable
• Wide output voltage range
• Easy to connect in parallel to increase performance
• Up to 60 °C operating temperature without derating

Technical Data

For fully technical data and specifications please view RS PRO datasheet.

Applications

DIN rail power supplies are commonly found in industrial applications such as; factory automation, process & control. Powering devices such as;
Sensors
PLCs
Relays
Actuators
