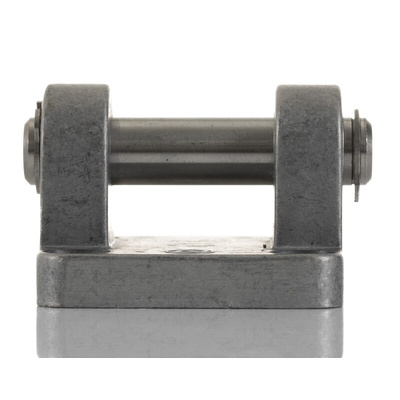

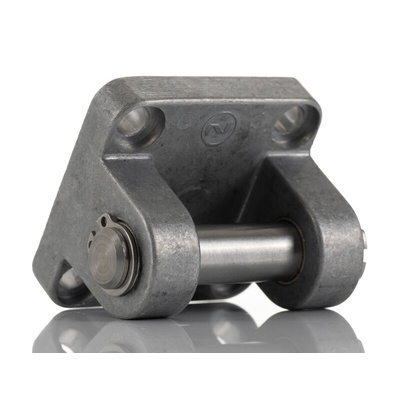

IMI Norgren Rear Clevis, 160g, 12mm Thread Diameter - QA Series - QA/8040/23
Swing your automation projects into action with this rear clevis from IMI Norgren. It's designed for securely mounting pneumatic profile cylinders that swivel and rotate. With dimensions of 52 (W) x 50 (H) x 60mm (L), this fitting works in conjunction with a 40mm bore pneumatic double-acting cylinder (510-4185).Made of stainless steel, you can count on a high level of strength in heavy-duty applications.
Features & Benefits
• Comes with pre-drilled mounting holes and screws for fast assembly
• Light weight of 160g for fuss-free installation
• Pin supplied so you can get things started right out of the box
• Standard 12mm threading diameter for easy fit
Applications
• Industrial automation
• Agricultural equipment
• Manufacturing machinery
What's the maximum operating pressure of the pneumatic cylinder this rear clevis fits?
The 40mm bore pneumatic cylinder from IMI Norgren (510-4185) has a maximum operating pressure of 16 bar, so it's suitable for heavy-duty industrial applications.
How do I install this rear clevis?
Remove the pin from the mounting holes and position them over the corresponding points of the bracket. Reinsert the pin to fasten, then secure the clevis to the cylinder using the screws provided.
Техническая спецификация
Rear Clevis DimensionsPRA Data SheetCatalogue - Industrial Automation| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
