Norgren Rear Clevis QA/8050/23, To Fit 50mm Bore Size

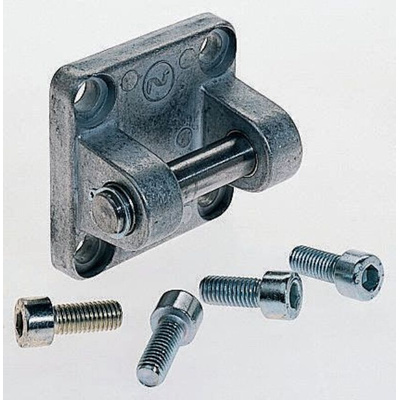

IMI Norgren Rear Clevis, 50mm Bore, 220g Weight - QA Series - QA/8050/23

For the secure mounting of pneumatic profile cylinders, choose this rear clevis from IMI Norgren. It serves as an attachment point for the cylinder, enabling it to pivot in dynamic systems. As it's made of stainless steel, this unit has an excellent strength-to-weight ratio and can withstand high loads, making it suitable for heavy-duty industrial applications. It's designed to accommodate cylinders with a 50mm bore size, so you can use it for large material-handling equipment.

Features & Benefits

• Light weight of 220g for easy handling during setup
• Comes with mounting holes and fasteners for quick and secure installation
• Compatible with bearings to reduce friction and support smooth operation
• Low profile design with thickness of 10mm for space efficiency in confined settings

Applications

• Process and packaging industries
• Factory automation
• Agricultural equipment

How do I install this rear clevis?

To install this clevis, first remove the pin from its mounting holes. Then, align the holes with those of the mounting bracket and fasten them using the pin. Next, secure the clevis to the cylinder using the four screws provided and it's ready for use.

Rear Clevis Dimensions

PRA Data Sheet
