Norgren Rear Hinge QA/8032/24, To Fit 32mm Bore Size

IMI Norgren Rear Hinge, Aluminium, To Fit 32mm Cylinder Diameter - QA Series - QA/8032/24

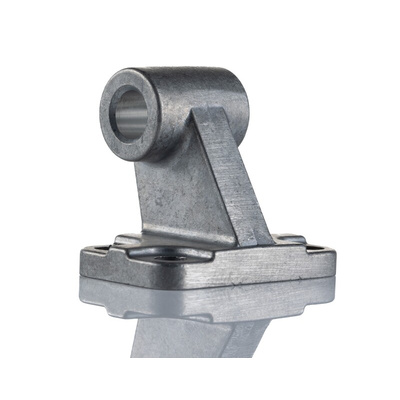

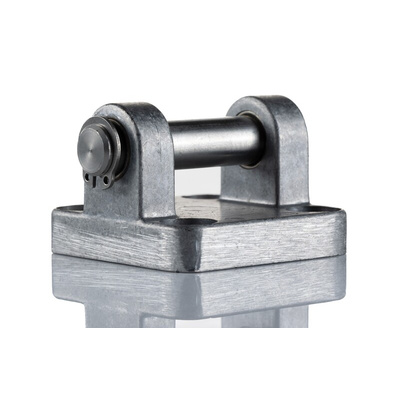

Ensure your 32mm-bore pneumatic cylinders stay put with this rear hinge from IMI Norgren. The bracket's base sits securely on panels, against walls or in other installations to keep moving parts steady. This helps prevent service interruptions caused by misalignment or accidental detachment. A swivelling top brace holds the cylinder in place while still letting you tilt it for easier installation and maximum performance. With this component on your team, you can rely on the firm attachment needed to boost your system's functionality and productivity.

Features & Benefits

• Rugged aluminium construction stands up to environmental impact and corrosion
• Pre-drilled holes for quick and convenient installation
• Easy access to lubricate the swivel hinge

Applications

• Automated factory processes
• Healthcare applications
• Railway systems
• Energy sector

Why is it important to secure a pneumatic system with a rear hinge?

A rear hinge protects your equipment against damage and helps prevent workplace accidents. Because pneumatic systems rely on pressure to work, they can cause significant harm if they're not attached securely.

How do I choose the right rear hinge for my pneumatic piston rod cylinder?

Getting it right is simple – the rear hinge should match the bore diameter of the cylinder.

PRA Data Sheet
