OVU00213, Overview Brushless Servo Motor, 12 V dc, 0.04 Nm, 120 rpm, Серводвигатель

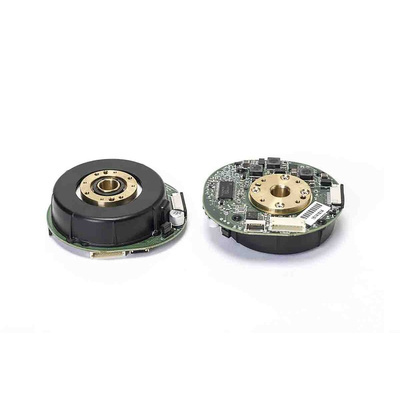

TITAN Servo Motor with Direct-Drive

The Titan™ intelligent servo motor combines highly efficient BLDC motors, advanced control electronics, high-performance servos and precision rotary position encoders to deliver drive solutions with class-leading positional accuracy, ultra-smooth and completely silent motion. It features a comprehensive control protocol that simply requires DC power and an I²C communications link for control data.

Designed to be integrated into applications requiring exceptional positional accuracy, by utilising Titan, you can develop advanced mechatronic solutions faster and with reduced development and production costs.

Features

• Fully integrated direct-drive solution


• Outstanding positional repeatability


• Wide dynamic speed range


• Zero backlash


• Silent operation


• Low power consumption


• Robust design


• Simple connectivity interface


• Compact design, low size & weight

Applications

Titan was developed to drive the next generation of discrete surveillance domes and video conferencing cameras. Its small size, silent operation and outstanding positional accuracy make it ideal for video conferencing cameras and small PTZ surveillance cameras.

Dimensions
64.8mm x 56mm (End stop)
64.8mm x 56mm (Continuous rotation)

Length
64.8mm (End stop)
64.8mm (Continuous rotation)

Width
64.8mm (End stop)
64.8mm (Continuous rotation)

Depth
21.5mm (End stop)
18.5mm (Continuous rotation)

Note

Rotation type: Continuous
