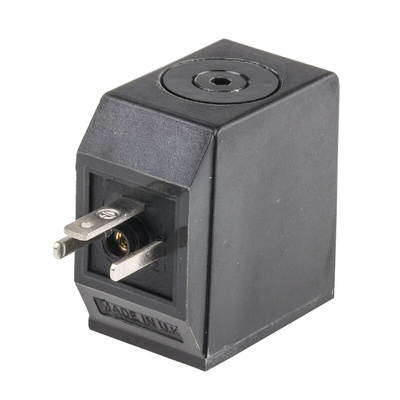

V10025-A13, Norgren 24 V dc Solenoid Valve Coil, Катушка

IMI Norgren Solenoid Valve Coil, 10 Bar Maximum Operating Pressure, 17mm Body Width - V100 Series - V10025-A13

Want to keep your equipment running smoothly and avoid downtime? Keep this IMI Norgren replacement solenoid valve coil in your kit. You can install it in Nugget 40 and 120 series valves to replace a worn-out part. The solenoid coil is the part of the valve that generates movement, which makes the valve either open or close. This lets you control the flow of compressed air through your pneumatic system. As this coil has a DIN 43650 C-type connection, it handles 24V DC and is widely compatible with standard systems.

Features & Benefits

• 100% ED rating allows solenoid to stay switched on indefinitely
• IP65 rating indicates protection against dust and low-pressure jets of water
• Voltage tolerance of ±10%, suitable for fluctuating electrical supplies
• Valves in the Nugget 40 series come with manual override for enhanced safety

Applications

• Industrial automation setups
• Transportation infrastructure
• Electrical engineering

What is the operating pressure of Nugget 40 series solenoid valves?

These valves can operate at pressures between 1.2 bar and 10 bar, so they're suitable for low-pressure applications.

Norgren Nugget 40 Series

High flow from compact valves - 17 mm body width
For sub base mounting or in line
In line valves incorporate 6mm push in fittings
Low power solenoids
Manual override
Solenoid connection via DIN43560C type connector
Operating pressure 1.2 → 10 bar
Temperature range -20 → +50°C
