V10025-A19, Norgren 220/240 V ac Solenoid Valve Coil, Катушка

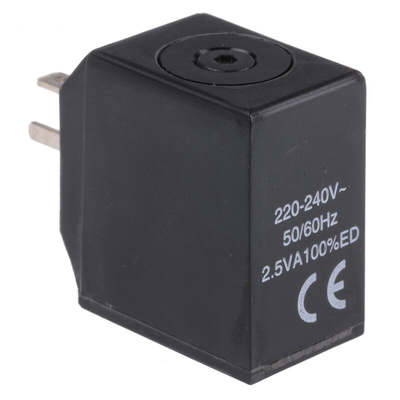

Norgren Replacement Solenoid Valve Coil - V10025-A19

When your solenoid valve fails and you need a new coil, keeping this unit on hand will allow you to make a swift replacement. It’s compatible with Nugget 40 and 120 series valves from Norgren. The coil in a solenoid valve is responsible for generating the magnetic field which opens or closes the valve, allowing media such as gas or liquids to flow through. Over time coils can fail due to factors such as wear-and-tear, corrosion, and burnout, and may need replacing.

Features and Benefits:

• Voltage tolerance ±10%
• Protection class IP65 (DIN 40050)
• Rating 100% ED
• Electrical connection DIN 43650 table ’C

Norgren Nugget 40 Series

High flow from compact valves - 17 mm body width
For sub base mounting or in line
In line valves incorporate 6mm push in fittings
Low power solenoids
Manual override
Solenoid connection via DIN43560C type connector
Operating pressure 1.2 → 10 bar
Temperature range -20 → +50°C

Datasheet - Norgren Solenoid Valve Coils
