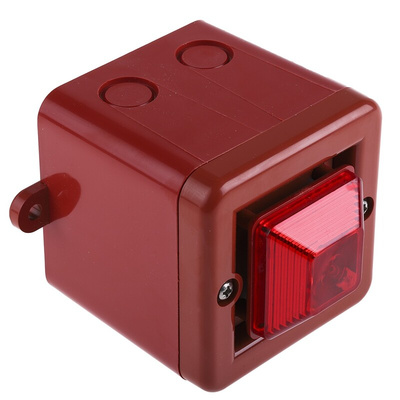

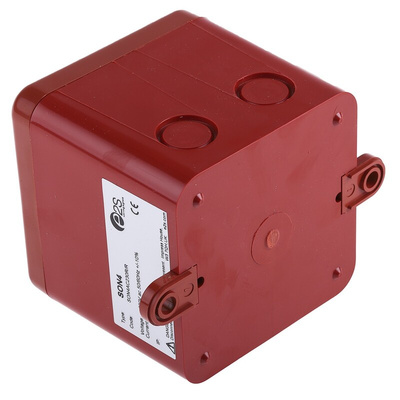

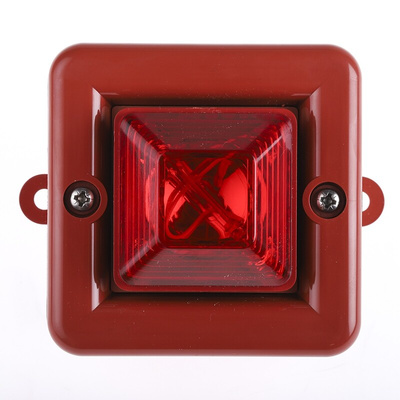

SON4AC230R/R, e2s SON4 Series Red Sounder Beacon, 230 V ac, IP66, Surface Mount, 104dB at 1 Metre

e2s Sounder Beacon

The e2s AC flashy sounder beacon is high tech equipment with an amber lens. This sounder beacon has a sound level output up to 104dB at 1m with a choice of 32 alarm tone and integral Xenon strobe beacon. The supply voltage rating is 230VAC. The robust fire retardant housing ensures the SON4. This is suitable for all general signalling applications including fire, security, and process control.

Features and Benefits

Automatic synchronisation on multi-sounder system
3-stage alarm
3 level of volume control
High output Xenon beacon
DC voltage units feature multiple flash rates
Continuously rated
Stainless steel fixings
Mounting via internal BESA compatible fixing positions or via external mounting lugs
Duplicate cable terminations (in and out for daisy-chain installations)
Tropicalisation available on request
Available with custom tone configurations and frequencies
Operating temperature ranges between -250C and 550C

Certifications

IP66 rated
VdS approved to EN54-3
UKOOA/PFEER compliant alarm tones
GOST-R approved

SON4 Instruction Manual

SON4 Datasheet
