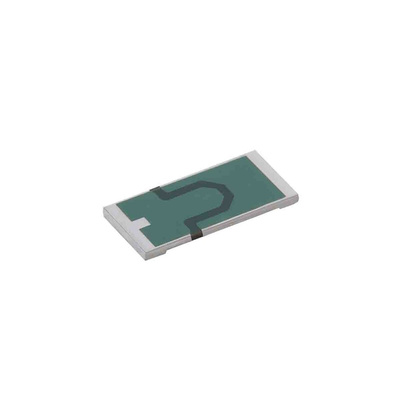

Isabellenhutte 10mΩ, 1206 (3216M) SMD Resistor ±1% 0.5 W @ 130°C, 1 W @ 70°C - CMK-R010-1.0, Резистор

1929802
Номер производителя: CMK-R010-1.0Производитель: Isabellenhutte
Цена за шт. (норма упаковки 10 шт)
210.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Two terminal surface mount utilizing ISA-Plan® foil technology. Optimized for lower TCR and Inductance. Current sensor for power hybrid applications, Control systems for the automotive market, Power modules, Switch mode power supplies.

10 W power rating at 70 °C
Constant current up to 10 A (10 mOhm)
High pulse power rating
Good long-term stability
Mounting: Reflow-, and IR-soldering
Applications
Current sensor for power hybrid applications
Control systems for the automotive market
Powerdules
Frequency converters
Switch mode power supplies
Driver for LED light systems죸ᇤ

Техническая спецификация
pdfDatasheet - Isabellenhutte CMK-R010-1.0 1206 (3216M) SMD Resistor
