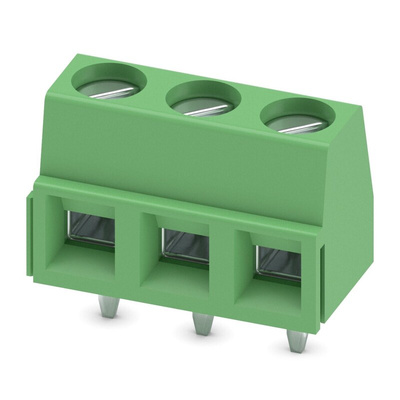

1729131, Phoenix Contact MKDSN 1.5/ 3-5.08 Series PCB Terminal Block, 5.08mm Pitch, Through Hole Mount, 1-Row, Solder Termination

Phoenix Contact MKDSN 5.08mm Pitch PCB Terminal blocks

The MKDSN range of PCB terminal blocks from Phoenix contact are great 7.62mm blocks that are through-hole and can easily be wave soldered to the PCB. These PCB Terminal blocks feature a low-temperature rise thanks to maximum contact force and have integrated protective guards that prevent you incorrectly inserting the conductors underneath the tension sleeve. The MKDSN terminal blocks are also a 5.08 mm pitch to have an increased voltage up to 400 V.

They're made from a durable and strong PA (Polyamide-Nylon) material and the material of the contact is CU (Copper). Furthermore, you simply just need to strip 8mm from your wire and insert them into the ports and simply tighten down an M3 screw for a secure and reliable connection over a long time.

Features and benefits:

• Allows connection of two conductors


• Protective guides prevent you from incorrectly inserting the conductors underneath the tension sleeve


• Worldwide known connection gives you maximum extensive compatibility


• Latching on the side of the unit enables various mounting positions to be combined


• Nominal current of 13.5 A


• Allows quick and easy connection to circuit boards once you've soldered it


• 5.08 mm Pitch

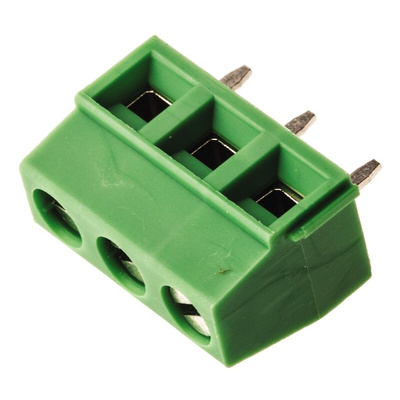

Phoenix Contact PCB Terminal Block, 3 Ways, 17.5A Current Rating - MKDSN 1,5/ 3-5,08 - 1729131

Making connections to your board-mounted system couldn't be easier, thanks to this PCB terminal block from Phoenix Contact. Its tin-plated copper alloy contacts efficiently carry electricity, keeping signals flowing without a hitch. Space for three conductors makes this a handy hook-up point for multiple devices at once.
Thanks to its screw terminals, wiring is done in a jiffy and there's no risk of contact with live parts. Built-in tension sleeves hold wires tight against movement, so you get reliable connections.
Worried about leakage current affecting your setup? This block's PA housing provides effective insulation, blocking loads from surging between components. With its compact 5.08mm pitch, it slots neatly onto busy circuit boards. Fitting the unit is done in no time via simple solder mounting. By shaking off surge voltages up to 4kV, it pushes through power faults to minimise the risk of hardware damage.

Features & Benefits

• Takes wires sized between 0.14 and 1.5mm² (26 to 16AWG) for versatile connectivity
• Single-row layout for easy accessibility
• Passed IEC 60999-1:1999 standard for electrical copper conductors, so there's minimal risk of conductor damage with connection
• Meets IEC 60068-2-6 test standards for withstanding sinusoidal vibrations without degrading or mechanical weakness

Approvals

UL (E60425); CSA (LR13631)

Approvals

UL (E60425); CSA (LR13631)

Datasheet 1729131

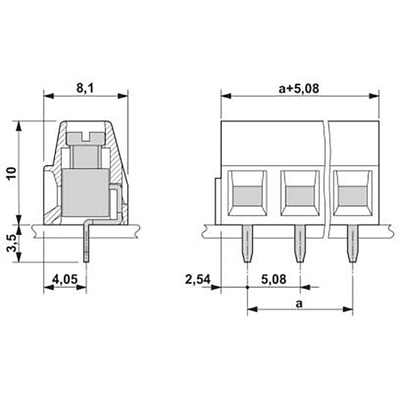

Line Drawing - 1729131
