7092353FUL-0389, Eaton Series Base Sounder, 10 → 60 V ac/dc, IP69

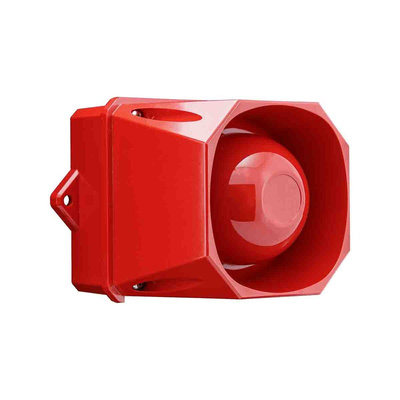

X10 Mini Sounder Beacon Base Red Housing 10 - 60 V ac/dc

With a 10-year Warranty, the Eaton range of Industrial Sounder Beacons are designed for tough demanding environments where you need a robust solution for signalling and life safety applications. The Mini has a sound output of up to 100 dB(a). Please note this listing is for the base unit only. To order the LED beacon to match, see the order codes and colour options in the main description.

Features & Benefits of X10

• 10-year Warranty for peace of mind
• First fix base and built in M20 grommets for easier and quicker installation
• Marine grade fixing for enhanced corrosion resistance
• MED Approved (mains rated option)
• Tough fade resistant and IK8 rated housing for challenging environments
• Steam Jet wash proof to IP69K with an operating temp of up to 70°c
• 102 tones & 4 stages for maximum flexibility
• Low Inrush current to reduce false tripping and the associated cost of production downtime
• Six, 5-Joule equivalent beacon colour options for a wide variety of signalling applications

Select your beacon colour

LED Beacon Mini Magenta 193-1070
LED Beacon Mini Green 193-1074
LED Beacon Mini Red 193-1071
LED Beacon Mini Amber 193-1072
LED Beacon Mini Blue 193-1073
LED Beacon Mini White 193-1075

Uses and Applications

Versatile and flexible by design, it's perfect for new systems, standalone or retrofit installations. The X10 ranges flexibility means it can provide a cost-effective solution for industrial applications such as factories, warehousing, storage areas, quarries and mining, plus a wide variety of process control applications.

Note

Eaton formerly known as Fulleon

Datasheet 7092353FUL-0389
