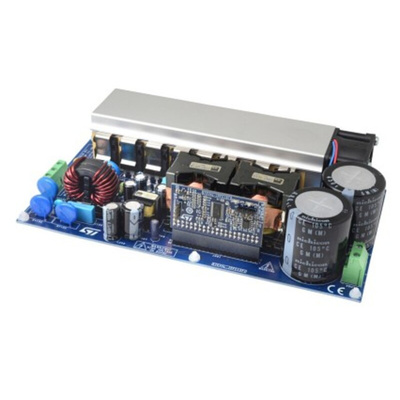

The STEVAL-IPFC12V1 2 kW interleaved PFC reference design features the performance of analog cycle-by-cycle current regulation and the flexibility of digital control to generate sinusoidal supplies with very high power factor and very low harmonic distortion.
Digital power control is based on the STNRGPF12 digital PFC controller, which in combination with the TN3050H-12WY thyristor implements digital inrush current limitation, and can drive up to two interleaved PFC channels using mixed signal (analog and digital) average current mode control in CCM at fixed frequency.
The 2 kW interleaved PFC reference design consists of a power board with 2-ch interleaved CCM boost power stage, input rectifier controlled bridge and auxiliary power supply, a control board with embedded STNRGPF12 digital controller and analog control circuitry, and a USB to UART (FTDI cable required - not included in the kit) bridge for programming the STNRGPF12 and performance monitoring.
Datasheet - STEVAL-IPFC12V1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
