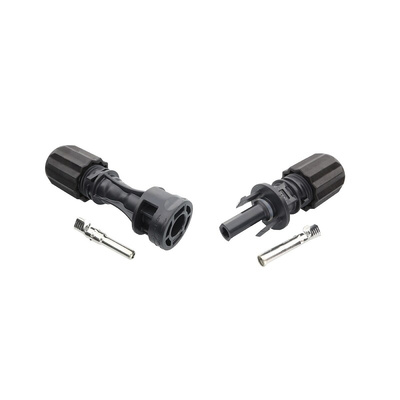

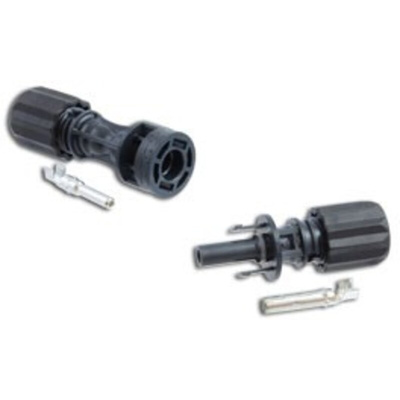

UTXCFA4AM, Amphenol Industrial UTX Series, Female, Cable Mount Solar Connector

The new UTX® from Amphenol Industrial Solar Technologies (AIST) is a robust DC connector. The UTX® is an evolution of AIST’s well-known H4 connector and mates with the H4. UTX uses Amphenol’s low resistance RADSOK® contact technology giving it the ability to accept wire gauges from 14AWG/2.5mm² to 8 AWG/10mm². An enhancement over the H4, is the UTX®’s ratcheting gland back nut, which prevents backspin once the nut is tightened. The amount and characteristics of materials used to make the UTX® have resulted in a more efficient and optimized design. By using gland nuts, environmental gaskets, wire-retention collets, and contacts that accept multiple wire gauges, part count goes down and cost-savings goes up. AIST’s UTX® connector is the ideal choice for all PV modules and installations around the world.

Fully mateable with H4 connectors
0.25 mΩ low contact resistance RADSOK® contact
Accepts wire gauges from 14AWG/2.5mm² to 8 AWG/10mm²
UTX cable range is from Ø7.6mm to Ø9.3mm
Wide operating temperature range (-40 °C to 90 °C)

Datasheet UTXCFA4AM
