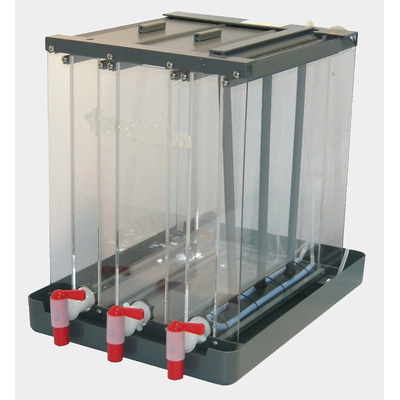

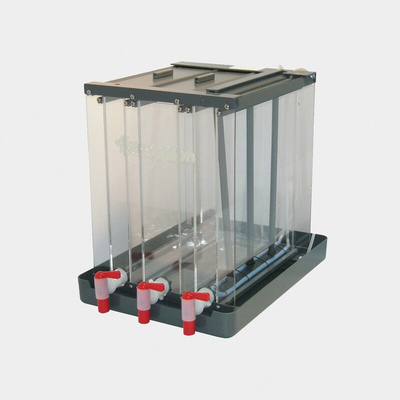

Fortex PA310 PCB Preparation & Etching Machine With 3 Tanks

1932025
Номер производителя: PA310Производитель: Fortex
Цена за шт.
375573.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The PA310 is a popular PCB processing unit. A self-contained triple process unit with built-in DEVELOP / WASH / BUBBLE ETCH functions providing a convenient bench standing system. The PA310 eliminates the normal untidiness associated with producing PCBs to the solderable-etched stage. A RESIST STRIP / WASH / IMMERSE TIN combination can be added to provide a full PCB processing run. Supplied Complete with 2 metre mains cable.

Operating Voltage 230VAC 50Hz/60Hz 600 Watts
1 x Adjustable Heater Approximately preset to 45 °C (113°F)
Suitable for metal Etching applications including the production of PCBs, from photoresist coated or conventional copper clad boards
(240 x 310 mm) Board/Panel capacity
Only suitable for use with Fine Etch Crystals (Sodium Persulphate) not recommended for use with Ferric Chloride
Unit Size Width 42cm, Depth 32cm, Height 44cm Weight 6Kg

Техническая спецификация
pdfDatasheet - PA310
Количество резервуаров:
3
Типы включенных резервуаров:
Bubble Etch, Rinsing
