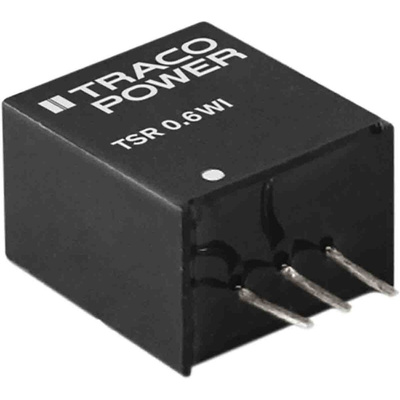

TSR 0.6-4850WI, TRACOPOWER Non-Isolated DC-DC Converter, Through Hole, 5V dc Output Voltage, 9 → 72V dc Input Voltage, 600mA

Traco Power Non-Isolated DC-DC Converter, 0.9% Load Regulation, 89% Efficiency - TSR 0.6WI Series - TSR 0.6-4850WI

Bridge the gap in your power distribution system with this Traco Power non-isolated DC-DC converter. It has a wide 8:1 input range, so it's a versatile option that handles between 9 and 72V DC. After conversion, you get a smooth and steady 5V DC output. As the unit has an 89% efficiency rating, you can trust waste is kept to a minimum. Installation is a piece of cake, thanks to the simple 3-pin package. There's no need to worry about electrical faults as the converter comes with short-circuit, overload and overtemperature protections to shut down common issues.

Features & Benefits

• Line regulation of ±0.9% keeps power flowing through unstable inputs
• Ripple voltage of 50mV for minimal disruption from power line noise
• Turns on in 25ms to get straight to work
• Insulating plastic casing cuts the risk of electric shocks
• Performs dependably in temperatures between -40°C and +85°C

Applications

• Industrial power supplies
• Food production
• Packaging lines

How do I fit this converter into my setup?

For quick fitting, this product is through-hole mounted into pre-drilled holes on your PCB.

Datasheet TSR 0.6-4850WI

Catalogue - DC/DC Converters
