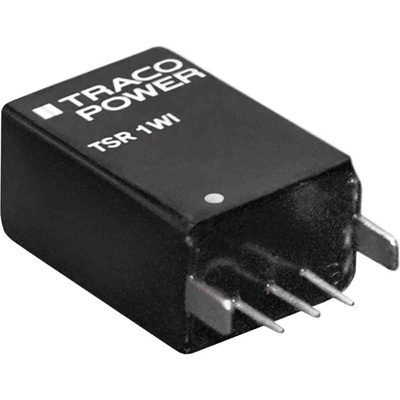

TSR 1-48120WI, TRACOPOWER TSR 1WI DC-DC Converter, 12V dc/ 1A Output, 17 → 72 V dc Input, Through Hole, +80°C Max Temp -40°C

Traco Power DC-DC Converter, 93% Efficiency, 5.5g Weight - TSR 1WI Series - TSR 1-48120WI

Need a stable energy source to keep your equipment ticking over? Reach for this DC-DC converter from Traco Power. It delivers an output voltage of 12V DC by stepping down inputs ranging anywhere from 17 to 72V DC. As the device is 93% efficient, it produces minimal waste heat while giving optimum output. It cools down using natural convection, so you don't need to worry about installing a heatsink. Tough metal housing provides resistance to corrosion and impact to give you dependable operation in harsh industrial settings.

Features & Benefits

• Overload and short-circuit protection to protect against electrical hazards
• Safe to use in challenging conditions thanks to an operating temperature range between -40°C and +80°C
• Mean time between failures of 8,215,000 hours for long-lasting performance
• Weighs just 5.5g, so it won't be a drag on your circuit board
• Ripple and noise voltage of 50mVp-p shields signals from EMI, giving you noiseless transmission

Applications

• Data centres
• Process and packaging industry
• Electric vehicles

Is this DC-DC converter flame-resistant?

Yes, this converter has self-extinguishing properties that mean it stops burning on its own when a fire occurs, so prevents the spread of flames.

Datasheet -TSR 1-48120WI

Catalogue - DC/DC Converters
