MPEX4S552, StarTech.com Startech 4 Port Mini PCI RS232 Serial Card, Плата

StarTech.com Serial Card, RS232 Connection Port, Mini PCI Bus - MPEX4S552

Do you have a device that follows RS232 data transmission standards? Connect it to your PC using this serial card from StarTech.com. You can use the four IDC to DB9 cables to enable multiple connections and expand your setup, without needing to invest in additional kit.

Fast data transferThe 256B FIFO size reduces buffering when transferring large amounts of data.
Wide compatibilityThe card uses a mini PCI bus to achieve quick loading speeds and easy network connections.
Supports demanding applicationsData transfer rates up to 921.6Kbps support the smooth running of your system.

• 16650 UART (universal asynchronous receiver/transmitter) circuitry supports common hardware like computers and printers
• RTS/CTS flow control prevents devices being overloaded

FAQs

Four high speed RS232 serial ports with data transfer rates up to 921.6 Kbps
High Performance 16650 UART

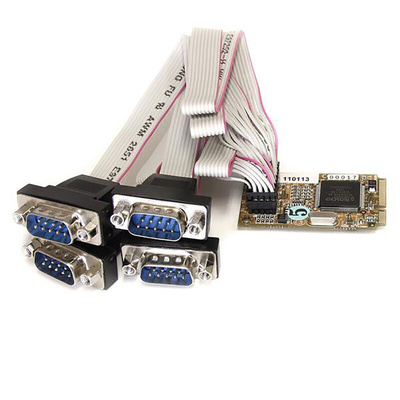

Includes 4x 30cm IDC to DB9 serial cables
256-byte deep FIFO per transmitter and receiver

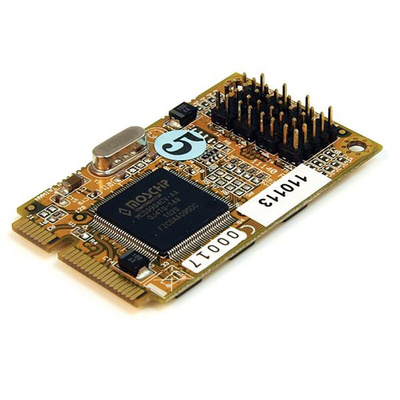

Native single-chip, single lane PCI Express
In-band software flow control, using programmable Xon/Xoff in both directions
Automated out-of-band hardware flow control using RTS/CTS
The smallest form factor available, for internally adding serial ports to any embedded system
Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
Applications
Add serial ports to industrial embedded computers and systems
Add RS232 serial control to an embedded or slim media center/media server/all-in-one PC
Add RS232 serial ports to slimline POS systems

What's the operating temperature range of this serial card?This unit has a wide operating temperature range between 0°C and +55°C, so it can cope with electronic devices that run hot.

Chipset Manufacturer

ASIX

Chipset Model

MCS9904CV-AA

Datasheet MPEX4S552

Manual - 4 Port RS232 Mini PCI Express Serial Card 2S 1P Mini PCI Express Serial/Parallel Combo Card
