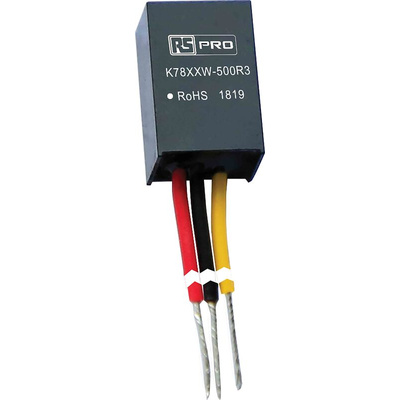

RS PRO Switching Regulator, 5V dc Output Voltage, 6.5 → 36V dc Input Voltage, 500mA Output Current, 1 Outputs, Импульсные стабилизаторы

RS PRO DC-to-DC Switching Regulators, K78 series

Introducing the RS PRO K78 range Switching Regulators, a series of wide input voltage non-isolated and regulated singe output converters. These high-quality switching regulators are suitable alternatives for three-terminal linear regulators, with the added benefit of being able to perform load conversions for greater flexibility. These RS PRO regulated converters have a low ripple and standby power consumption, making them highly efficient to work at full load without the need for a heat sink, and additionally making them ideal for use in instrumentation, IoT and a wide variety of battery-powered applications.

Features and Benefits:

• The RS PRO regulators offer high efficiency of up to 95%


• No-load input current as low as 0.2mA


• Operating ambient temperature range -40°C to +85 °C


• Output short-circuit protection


• 3 Year Warranty

Applications:

Switching regulators are circuits that are easily able to take energy from an input voltage source and push them into the output by using an electrical switch and controller. This switch and controller have the ability to ’regulate’ the rate at which the energy is moved to the output. The main benefit of switching regulators is that they work at a greater efficiency than their linear counterparts, making them more economical and better to drive higher input voltages in a wide variety of power management applications. Switching regulators are commonly used in:

• Mobile phones


• Games consoles


• Computers and laptops


• Digital cameras


• Power supplies

Approvals and Certifications:

• CE Certified

What other switching regulators are available in this range?

The range of RS PRO K78 series switching regulators are listed below:
193-3983 24 VDC (Input Voltage), 5 VDC (Output Voltage), 0.5A
193-3985 24 VDC (Input Voltage), 12 VDC (Output Voltage), 0.5A
