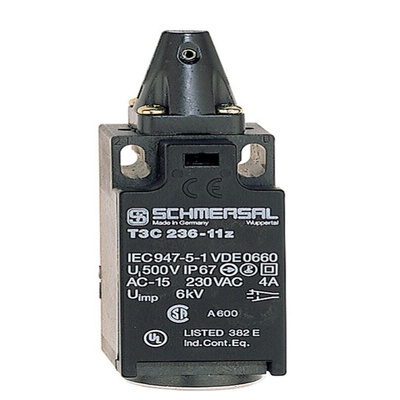

T3C 236-11Z, Schmersal TC 236 Safety Hinge Switch, NO/NC, Переключатель

T.C 236, Hinge Slider

These switches are designed for hinged guards and have a built-in actuator lever which operates the contact block with a positive mechanical linkage
N/C safety contact positively disconnected after just 4.5° rotation
Head can be turned in any one of four 90° positions
Slow action contact system
The housing with snap-on cover fastened without screws to facilitate easy connection

Note

It is important to select the correct lever model dependent upon the position of the hinge on the guard

Standards

IEC947-5-1/EN60947-5-1/DIN VDE 0660 Part 200; BG-GS-ET-15; DIN EN 50047; BS5304

Schmersal Safety Hinge Switch, 4A Maximum Current, M20 - TC 236 Series - T3C 236-11Z

Protect personnel from hazards and machinery from damage with this safety hinge switch from Schmersal. It's commonly used in automated assembly lines that are in constant use. The safety hinge switch disconnects power to active machine operations when a protected door or guard is opened. It connects to the hinge pin on a medium-sized door and isolates machine power when the connected hinge is turned 4.5°. This ensures an extra-sensitive and rapid response to enhance workplace safety quickly and efficiently.

Features & Benefits

• NO/NC (normally open/normally closed) contacts for adjustable state configuration
• Maximum current of 4A for use in low-current applications
• Shaft length of 70mm provides a deep switch fitting to prevent loosening
• M20 conduit entry for secure installation into medium-sized hinge pins
• Works with both AC (alternating current) and DC (direct current) for versatile use

Applications

• Food processing
• Packaging applications
• Printing industry
• Laboratory equipment
• Machine automation

Is this safety hinge switch suitable for use in extreme temperatures?

Yes, this safety hinge switch has a broad operating temperature range of -30°C to +80°C for use in a variety of demanding environments.
