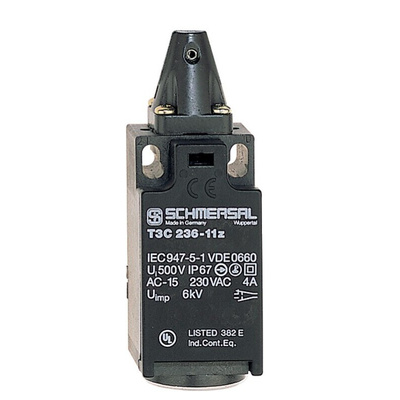

T4C 236-11Z, Schmersal TC 236 Safety Hinge Switch, NO/NC, Переключатель

T.C 236, Hinge Slider

These switches are designed for hinged guards and have a built-in actuator lever which operates the contact block with a positive mechanical linkage
N/C safety contact positively disconnected after just 4.5° rotation
Head can be turned in any one of four 90° positions
Slow action contact system
The housing with snap-on cover fastened without screws to facilitate easy connection

Note

It is important to select the correct lever model dependent upon the position of the hinge on the guard

Standards

IEC947-5-1/EN60947-5-1/DIN VDE 0660 Part 200; BG-GS-ET-15; DIN EN 50047; BS5304

Schmersal Safety Hinge Switch, NO/NC, 24V DC - TC 236 Series - T4C 236-11Z

Ensure the safety of personnel in your workspace by installing this safety hinge switch from Schmersal on a gate or guard. It cuts power to an electrical circuit when the actuator is moved by just a 4.5° rotation. This makes it highly sensitive to the movement of your safety guard, helping to minimise accidents and damage to machinery. The actuator head can be repositioned by 90° for flexible installation.

Features & Benefits

• Self-extinguishing glass fibre-reinforced enclosure for safety in the event of a fire
• Stainless steel actuator is resistant to corrosion and impact
• IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Broad operating temperature range of -30°C to +80°C for use in demanding environments

Applications

• Automated machinery
• Processing and packaging systems
• Doors, gates and guards

How long will this safety hinge switch last?

This safety hinge switch has a robust mechanical lifespan of 1,000,000 operations, so it will last a long time without needing to be replaced.
