RS PRO PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, DPDT, Реле

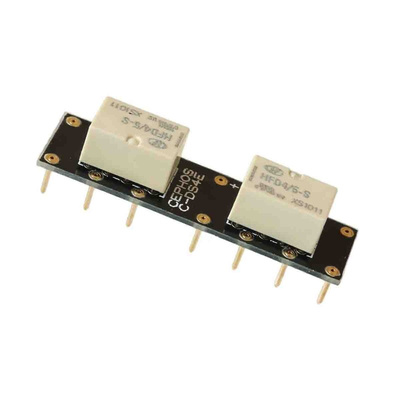

RS PRO, 36 V Coil Non-Latching Relay 4PDT, 2 A Switching Current PCB Mounting, 4 Pole

Switch your electrical circuit on and off with this 24 V coil non-latching 4PDT (four pole double throw) relay from RS PRO. The switch returns to a closed position when not in use, so you'll usually find it in push button applications including automotive engines, household appliances and industrial machinery.
For safe installation, you can mount this non-latching relay onto a circuit board. The component is compact in size, which means it's well-suited for smaller spaces. It's often used as a replacement for the discontinued Panasonic DS4E, Omron G6A-434P, Fujitsu RA4 and IMO EN4-CW relays.

Features and Benefits

• Coil power of 400 mW
• Coil resistance of 144 Ω
• Coil voltage of 24 V
• Contact configuration of 4PDT
• Depth of 10.16 mm
• Length of 35.56 mm
• Maximum switching power (AC) of 62.5 VA
• Maximum switching power (DC) of 60 W
• Maximum switching voltage of 250 V AC
• Maximum switching voltage of 220 V DC
• PCB mounting type
• Four poles
• Switching current of 2 A
• PCB pin terminal type

RS PRO Datasheet
