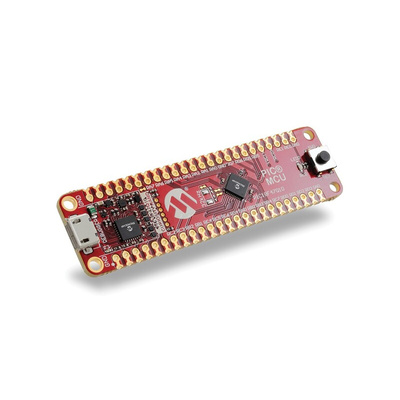

With full program and debug capabilities, the PIC18F47Q10 Curiosity Nano evaluation kit offers complete support for your next design. With the award-winning MPLAB X integrated development platform and MPLAB Code Configurator (MCC), the kit provides access to the Intelligent analog and Core Independent Peripherals on the PIC18F47Q10. MCC is a free, graphical programming tool to configure the rich set of peripherals and functions specific for your application.
PIC18F47Q10 microcontroller
One mechanical user switch
One yellow user LED
Footprint for 32.768kHz crystal
On-board debugger
Board identification in Microchip MPLAB X
One green power and status LED
Programming and debugging
Virtual COM port (CDC)
One logic analyzer channel (DGI GPIO)
USB powered
Adjustable target voltage
MIC5353 LDO regulator controlled by the on-board debugger
1.8 - 5.1 V output voltage (limited by USB input voltage)
500mA maximum output current
Supported with application examples in MCC
