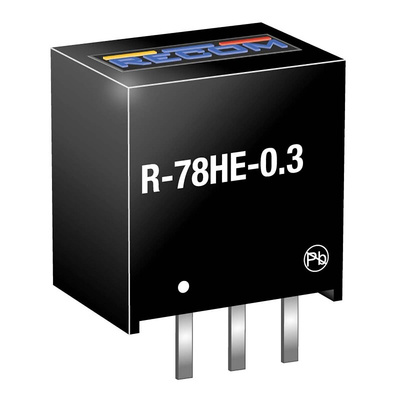

R-78HE5.0-0.3, Recom Switching Regulator, PCB Mount, 5V dc Output Voltage, 6.5 → 72V dc Input Voltage, 300mA Output Current, 1

1936473
Номер производителя: R-78HE5.0-0.3Производитель: Recom
Цена за шт.
2063.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The R-78HE-5.0-0.3 is a low cost switching regulator module in a compact package that has been specially designed for battery-powered use, but will find many other high input voltage applications. The exceptionally wide input voltage and operating temperature range, high MTBF (15 mio. hrs), tight regulation and low quiescent current consumption makes this converter ideal for 36V/48V lithium-ion and 12V/24V/48V lead-acid battery-powered applications. The 100V surge withstand capability means that external voltage clamping circuits can be eliminated.

Designed for 12V - 60V battery-powered apps
Wide input range (6.5V - 72V)
100V surge withstand
-40°C to +105°C operation at 48V input, full load
Short circuit protected
Efficiency up to 83%, no need for heatsinks

Техническая спецификация
pdfDatasheet R-78HE5.0-0.3
