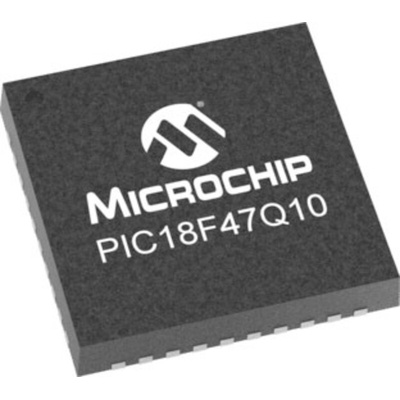

Microchip PIC18F47Q10-I/MP, 8bit PIC Microcontroller, PIC18F, 64MHz, 128 kB Flash, 40-Pin QFN, Микроконтроллер

PIC18 Core with 83 Instructions, 31 Stack Levels
Internal 64MHz oscillator
Operating Voltage Range:’F’ Version (1.8V – 5.5V)
Temperature Range:Industrial Version (-40C to 85C)Extended Version (-40C to 125C)
128 KB Flash Program Memory with self read/write capability
3728 Bytes Data SRAM Memory
1024 Bytes of EEPROM
10-bit ADC with computation, 35 channels
8 x Configurable Logic Cell (CLC)
1 x 5-bit DAC
2 x Comparators
Fixed Voltage Reference (FVR) module 1.024V, 2.048V and 4.096V output levels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1 x Zero-Cross Detect
2 x I2C/SPI
2 x EUSART with LIN support
CRC with Memory Scan
Windowed Watchdog Timer (WWDT)
1 x Hardware Limit Timer (HLT)
1 x Complementary Waveform Generator
2 x standalone 10-bit PWM modules
2 x Capture/Compare/PWM modules
Three 8-bit Timers/Counters
Four 16-bit Timers/Counters
1 x Hardware Limit Timer (HLT)
Extended Watchdog Timer (WDT)
Doze, Idle, and Sleep Power Saving Operating Modes
Low Current Power-on Reset (POR)
Brown-out Reset (BOR)
Low-Power BOR (LPBOR)
Peripheral Pin Select
In-Circuit Debug Integrated On-Chip
In-Circuit Serial Programming (ICSP) via Two Pins

Datasheet PIC18F47Q10-I/MP
