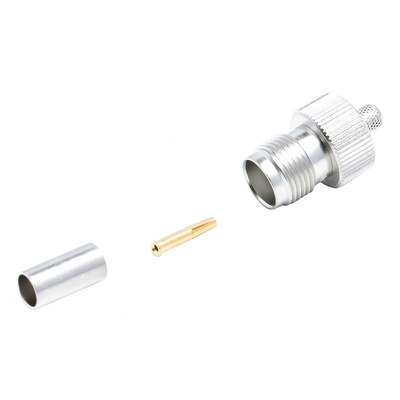

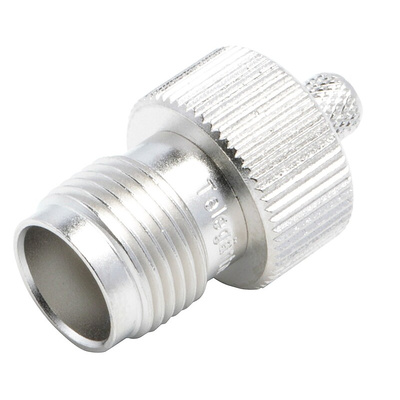

RS PRO, jack Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Cable Mounting, TNC Connector Jack, RG58 C/U

When you have two coaxial cables that you can't join directly to one another, turn to this RS PRO connector jack for seamless data transmission. This connector is designed for use with RG58 C/U cables, so it's an ideal choice when working with two-way radio systems.
Thanks to the gold and nickel-plated copper contacts, the connector is highly durable and able to withstand extreme temperatures between -65°C and +165°C. This material also provides good conductivity and resistance to corrosion, ensuring a reliable connection over time even when used in tough industrial conditions.
For further protection, the crimping termination method creates an airtight seal that keeps moisture and particles out. This ensures clear data transmission and lengthens the service life of the connector.

Features and Benefits

• Straight body orientation
• Nickel body plating
• RG58 C/U cable type
• TNC (Threaded Neill-Concelman) coaxial connector type
• Beryllium copper contact material
• Gold over nickel over copper contact plating
• Female gender
• Impedance of 50 Ω
• Maximum operating temperature of +165°C
• Minimum operating temperature of -65°C
• Cable mounting type
• Operating frequency of 0 to 11 GHz
• Size of 31.8 (length) x 14.3 mm (width)
• Crimp termination method
