J01001A0038, Telegartner, jack PCB Mount BNC Connector, 50Ω, Through Hole Termination, Right Angle Body, Разъем

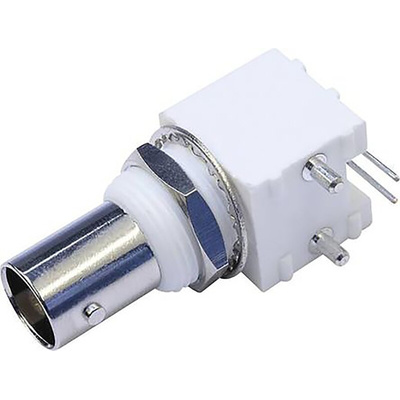

Telegartner 50 Ω Insulated Right Angled BNC Bulkhead Jacks - PCB Mount

From Telegartner, a range of 50 Ω insulated right angled BNC PCB mount jacks. The solder termination jacks have gold plated beryllium copper contacts and a PTFE insulator. Featuring a simple bayonet coupling mechanism the BNC jacks can be used up to 4 GHz. Requiring only a quarter turn to connect and disconnect this connection method makes the BNC jack one of the most commonly used RF connectors around.

Features and Benefits

• Bayonet coupling
• Solder termination
• Up to 4 GHz

Applications

• Signal
• Data
• Video transmission

BNC series in accordance with IEC 169-8

This HF plug connector is the most commonly used coaxial connection. It features a compact design and a bayonet cap, and is user-friendly and moisture-proof. Spring-mounted CuBe2 contact parts, gold-plated internal conductors and PTFE insulated parts with CuZn39Pb3 nickel-plated housing parts. The product always comes complete with assembly instructions.

BNC LP-Einbaubuchse isoliert / Bulkhead Receptacle insulated
