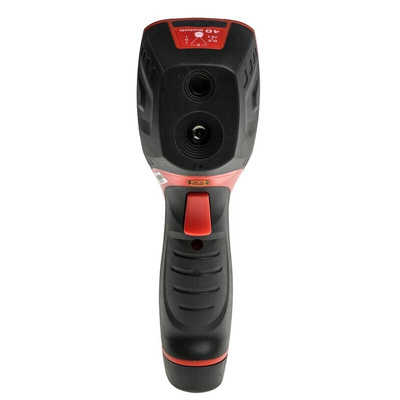

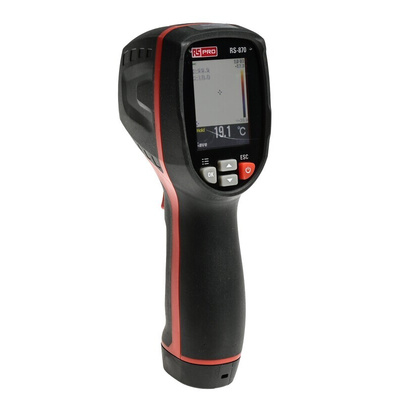

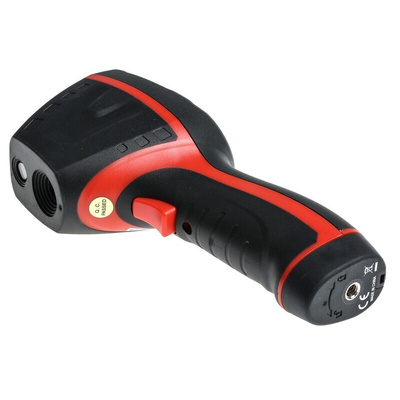

RS PRO DT-870 Bluetooth, WiFi Thermal Imaging Camera, -4 → +716 °F, +20 → +380 °C, 80 x 80pixel Detector

RS PRO RS-870 Thermal Imaging Camera with Bluetooth

Introducing the RS PRO RS-870 Thermal Imaging Camera with Bluetooth capability. This high-quality infrared (IR) thermal camera provides accurate and reliable measurement, by combining all the important features for thermographic measurement at an affordable price. This hi-tech thermal imager is used as a non-contact method to visualise temperature differences and is suitable for use across a wide range of applications like inspection work or preventative maintenance tasks. The drop-proof, compact and lightweight design makes this an ideal thermal imager to have with you to save time and be able to get quick and precise thermal readings, while the built-in Bluetooth function allows for easy transfer of data for further analysis at the user’s convenience. This robust RS PRO thermal camera is a versatile and essential companion for the engineers and technicians working in the service and maintenance industries.

Features and Benefits:

The RS PRO RS-870 hand-held thermal imaging camera provides accurate, fast and reliable temperature measurement using point and shoot technology and high-quality thermal imaging
Thermal images are displayed on the large, 80x80 pixel TFT screen, producing superior image quality and making the results easy to read
Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
The camera has the ability for datalogging via the internal memory, while the built-in Bluetooth instant share function allows for easy transfer of data to the user’s smartphone or Bluetooth device for further investigation
The built-in LED flashlight is convenient when working in dark and unlit inspection environments
With an 8-hour battery life and an easy-to-use interface, this unit is ideal for predictive maintenance, equipment troubleshooting and verification
The compact, rugged and lightweight design allows for optimum portability and performance, even in harsh working conditions
Object temperature range of 20°C to 380°C
Supplied with battery, App software, adaptor, USB cable and convenient carry case for easy storage and protection of the unit when not in use

Applications:

The RS-870 is a handheld Thermal Imaging Camera which can be used for predictive maintenance, equipment troubleshooting and verification. Thermal images are displayed on the TFT screen and the datalogging capacity enables the user to save images to the camera’s internal memory. With Bluetooth instant share function, thermal images can be transferred to smart phones for quick reporting and analysis.

How does a Thermal Imaging Camera work?

Thermal Imaging cameras create thermal images, also known as a thermogram, through a process called Thermography. This allows the user to visualise heat sources in real-time, making temperature measurement more accurate.

Can Thermal Imaging Cameras see through objects?

Whilst Thermal Imaging Cameras can't see through objects, they can detect heat sources produced on the surface of objects, such as locating a fire or heat source behind a wall.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

RS PRO T&M Selection Guide 2020_UK

UN38.3 Lithium Battery Test Summary
