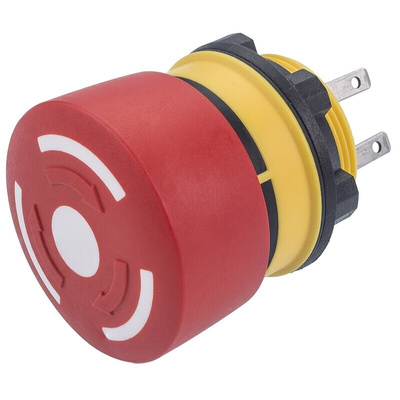

84-5230.0020, EAO 84 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1 NO + 1 NC, IP65, IP67

EAO Emergency Stop Push Button, Maintained Switching Action, Plastic Housing Material - 84 Series - 84-5230.0020

Get the jump on potential hazards in your industrial appliances with this emergency stop push button from EAO. It saves the day by bringing your machine to an instant halt, preventing equipment damage or operator injury. Thanks to its durable plastic housing, this unit can resist impact and scratches without breaking a sweat, making it a good choice for harsh environments. A twist-release function makes it easy to reset after activation, priming it for safe operation again once the issue has been resolved.

• Compact cutout diameter of 22mm for installation in tight spaces
• Plug-in terminals for simple connection of wires
• Distinct yellow and red colours mean it stands out as a safety device
• Mushroom-shaped head for comfortable handling
• Gold-plated silver contacts are highly conductive and resistant to corrosion to ensure reliable switching

Applications

• Transportation industry
• Process and packaging equipment
• Robotics and automation

Is this emergency stop push button dustproof?

Industrial or process automation equipment
Machinery, in particular for handheld control units
Robotics
Material handling and lifting platforms
Medical devices
Robust mono-block with a foolproof and fail-safe design
Very low back panel depth
Attractive, modern design
Reliable and long service life
Clearly visible illumination
Mounting cut-out: 22.3 mm
Plug-in (2.8 mm x 0.5 mm) and 300 mm flat ribbon cable connection
Switch rating max. 250 V, max. 3 A

Yes, its IP65 rating means it's fully protected against dust and can withstand low-pressure water jets.

Datasheet

How to use the RS digital product selector for E Stops Data Sheet
