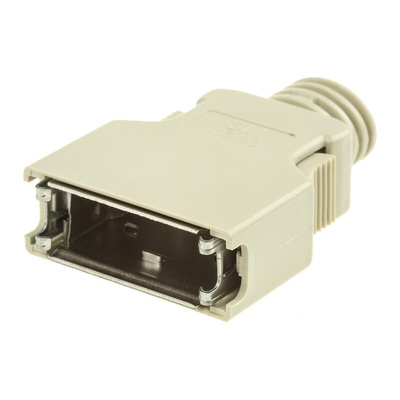

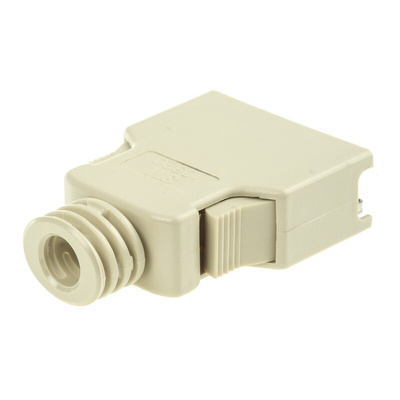

10320-3210-000, 3M 103 Series ABS D Sub Backshell, 20 Way, Strain Relief

3M Round Cable Plastic Backshell

This range of 103 Series Mini Delta Ribbon (MDR) Backshells are .050" Plastic Shielded Junction Shells for Round Cable. The design of these 103 Series MDR Backshells consists of a plastic cover with straight cable exit and a two piece metal junction shell.

Features and Benefits

• UL 94V-0 plastic outer shell
• Suitable for use with IDC plugs stock no. 163-3285 (typically)

Options

• Part numbers 103xx-3210-00x for the 103 Series MDR Backshell have quick release latching and a one piece plastic shell.
• Part numbers 103xx-3280-00x for the 103 Series MDR Backshell have quick release latching and a two piece plastic shell.
• Part numbers 103xx-32J0-00x for the 103 Series MDR Backshell have thumb screws and a one piece plastic shell.

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M D-Sub Backshell, Straight Body, 20 Way - 103 Series - 10320-3210-000

Looking for a functional way to secure and insulate your D-sub connectors in electronic applications? This 3M D-sub backshell is a plastic housing for round cables. Use it to protect your connections from jolts and vibrations to ensure that your equipment works effectively. It provides electromagnetic interference (EMI) shielding, so avoids performance disruptions and damage to adjacent components or the connector. You can rely on this backshell to stabilise your connections and ensure the stable performance of your electronic instruments.

• ABS (acrylonitrile butadiene styrene) housing resists damage caused by chemicals and abrasions to effectively safeguard internal wiring• Metal shell interior establishes optimal conductivity for reliable power and signal transfer• Straight cable exit provides strain relief to prevent damage to cables and minimise maintenance needs

Applications

• Home computing• Commercial and office networks• Multi-media equipment

How will this connector shell prevent damage to the other components in my system?

This connector shell is insulated and heat resistant. That means if a short circuit damages the wires in the backshell, the casing will isolate the damage and it won't spread to other components.

Standards

IEEE 1284

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
