US2881ESE-AAA-000-RE, Melexis Surface Mount Hall Effect Sensor, TSOT, 23-Pin, Датчик Холла

The US2881 is a bipolar Hall-effect switch designed in mixed signal CMOS technology.
The device integrates a voltage regulator, Hall sensor with dynamic offset cancellation system, Schmitt trigger and an open-drain output driver, all in a single package.
Thanks to its wide operating voltage range and extended choice of temperature range, it is suitable for use in automotive and consumer applications.

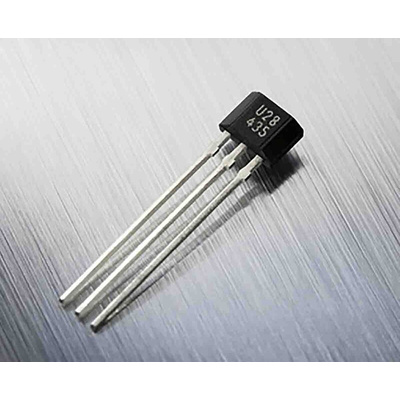

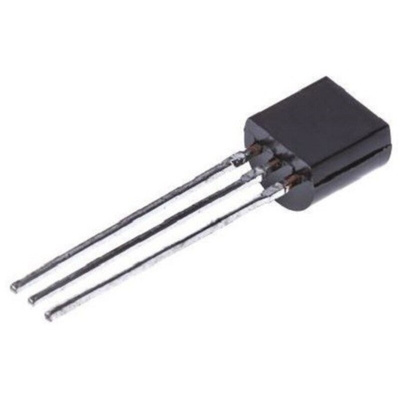

The device is delivered in a TSOT for surface mount process and in a Plastic Single In Line (TO-92 flat) for through-hole mount.

Wide operating voltage range from 3.5 V to 24 V
Very high magnetic sensitivity
CMOS technology
Chopper-stabilized amplifier stage
Low current consumption
Open drain output
Thin SOT23 3L and flat TO-92 3L both packages
SE package north pole active
UA package south pole active

Datasheet
