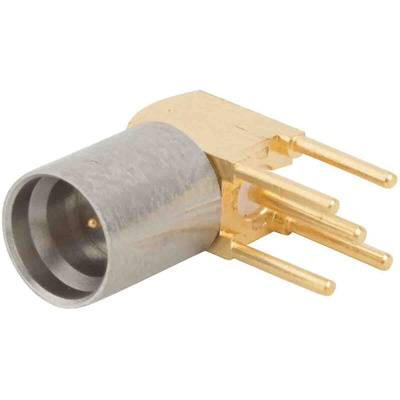

SMP-MSLD-PCT-6, Amphenol RF SMP Series SMP Connector, 50Ω

SMP Connector Series

The SMP interface is a subminiature interface in the same scale as MMCX connectors but offers a frequency range of DC to 40 GHz. It is commonly used in miniaturized high frequency coaxial modules and is offered in both push-on and snap-on mating styles.

The available detent systems, full and limited, provide respective levels of engagement/disengagement forces. This family of interconnects addresses all package design needs. It can be utilized as a highly shielded interconnect for high data rate applications or in a board-to-board system using a floating bullet. This floating bullet provides a link between mated pairs compensating for both radial and axial misalignment.

Available in a cable-to-board mated pair, the plug side can be provided in either right angle or straight with termination capability to either 0.047” or 0.086”, semi-rigid or conformable coax. The receptacles are designed for surface, through hole, or end launch mounting.

Features and Benefits

• RF performance DC to 40 GHz


• Designed to accommodate both radial and axial misalignment


• Push-on and snap-on mating styles for quick installation

Applications

• Antennas


• Broadband


• Military


• Instrumentation
