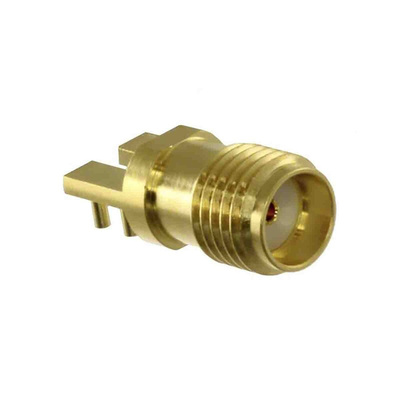

901-10510-2, Amphenol RF SMA Series, jack Through Hole SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

Amphenol SMA Series

Using a threaded interface, SMA 50 Ohm connectors are semi-precision units that provide excellent electrical performance from DC to 26.5 GHz and outstanding mechanical durability. SMA connectors feature stainless steel or brass construction and - 36 threaded coupling, which offers high performance in a compact design. For phase array radar, test equipment, ILS landing systems and other instrumentation using phase matching techniques, SMA interconnects offer a precise and simple means of phase adjustment for microwave devices. Built in accordance with MIL-C-39012 and CECC 22110/111, SMA connectors can be mated with all connectors that meet these specification mating diameters regardless of manufacturer.

Features and Benefits

• Light weight, compact and vibration proof design
• Low cost commercial grade (Brass SMA) available in nickel or gold plating
• Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables

Applications

• Base stations
• Antennas
• Telecommunications
• Instrumentation
• PC/LAN

Amphenol SMA Connectors

Datasheet
