METSEPM3255, Schneider Electric PowerLogic 3 Phase Backlit LCD Energy Meter, Измеритель мощности

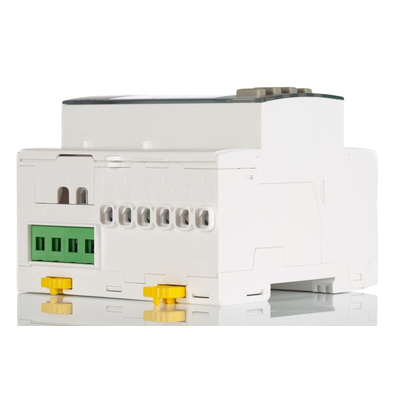

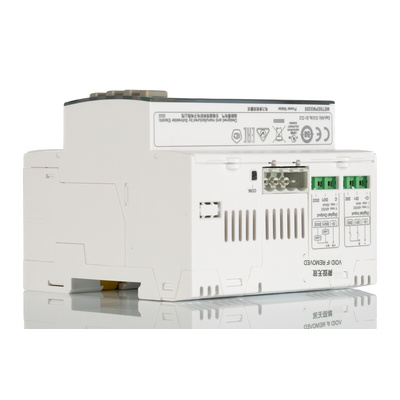

Schneider Electric PM300 Energy Meter - METSEPM3255

Introducing a cost attractive, feature-rich energy meter that has been designed to be DIN rail mounted. Offering users, a simple, yet sophisticated energy management solution. Providing an ideal way for cost management applications, featuring measurement capabilities needed to monitor electrical installations. The METSEPM3255 is ideal for power metering and network monitoring applications that seek to improve the availability and readability of an electrical distribution system.

Features & Benefits

• The meter is fully capable of supporting sub-metering and cost allocation applications


• Metering of electrical parameters to better understand the behaviour of your electrical distribution system


• Forms part of the PowerLogic PM3000 product range


• Up to the 15th harmonic power quality analysis


• Multi-tariff, power monitoring and sub billing applications


• Measurement types - Active and reactive power, apparent power, current, voltage, energy, power factor, frequency, total current harmonic distortion THD (I) and total voltage harmonic distortion THD (U)


• Features a supply voltage of 100...277 V AC 45...65 Hz, 173...480 V AC 45...65 Hz and 100...300 V DC


• The network frequency is 60 Hz, 50 Hz


• Has a rated current of 5A, 1A


• Type of network - 3P, 3P + N and 1P + N


• Power consumption is 5 VA


• Clip-on mounting mode


• Data recording - Energy consumption logs, 15 alarms, power logs, time stamping, min/max of instantaneous values


• Backlit LDC display type

Common applications

Designed for a multitude of applications this energy meter is predominantly used for bill checking, verifying that you are charged for the energy that you use. There is an aggregation of energy consumption which also includes WAGES and allocating costs per area, per usage, per shift or per time within the same facility. This digital power meter features cost management applications that allow the energy cost and usage analysis per zone, per usage or per time period which allows for a more optimised energy use.

What are the benefits of using a digital power meter compared to an analogue power meter?

Yes, there is a multitude of benefits. One of the biggest being that a digital power meter provides a continuous and instantaneous reading. Commonly, analogue power meters are used for the same purpose as a digital meter but are distinctly more difficult to read and understand, hence why qualified technicians are a more popular choice when it comes to taking meter readings. Digital power meters are usually integrated to share usage measurements and data to utility suppliers enabling to be easier and more convenient for both the energy user and energy company to give accurate readings.

Datasheet METSEPM3255
