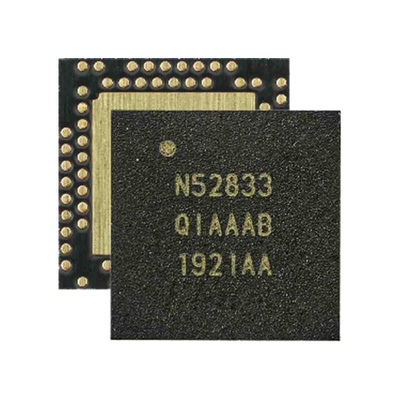

Nordic Semiconductor nRF52833-QIAA-R7, System-On-Chip for Industrial, 42-Pin QFN73, Микросхема

1946360
Номер производителя: nRF52833-QIAA-R7Производитель: Nordic Semiconductor
Цена за шт. (норма упаковки 2 шт)
1821.00 руб. (С НДС) *
Количество 2+ 100+ 250+ 500+
Цена 1821.00 руб. 1701.00 руб. 1542.00 руб. 1416.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The nRF52833 is a general-purpose multiprotocol SoC with a Bluetooth 5.1 Direction Finding capable radio, qualified for operation at an extended temperature range of -40°C to 105°C. It is the 5th addition to the industry leading nRF52 Series and is built around a 64 MHz Arm Cortex-M4 with FPU, and has 512 KB flash and 128 KB RAM memory available for higher value applications.
The extended 105°C temperature qualification, coupled with a generous amount of memory and dynamic multiprotocol support ensures the nRF52833 is an ideal device for a wide range of commercial and industrial applications, including professional lighting and asset tracking. A 1:4 RAM to Flash ratio and +8 dBm output power make the nRF52833 suitable for advanced wearables or smart home applications where robust coverage is important.
The two-stage LDO regulator and a DC-DC converter, together with the automated power management system help deliver low power numbers even in more advanced applications.

Техническая спецификация
pdfnRF52833 Data Sheet
Блок обработки:
Bluetooth
Количество контактов:
42
Напряжение питания - максимальное:
5.5 В
Напряжение питания - минимальное:
1.7 В
Применение:
Industrial
Рабочая температура - максимальная:
+105 °C
Рабочая температура - минимальная:
-40 °C
Тип монтажа:
Поверхностное крепление
Тип упаковки:
QFN73
