RS PRO Grey ABS Push Button Enclosure - 1 Hole 22mm Diameter, Корпус

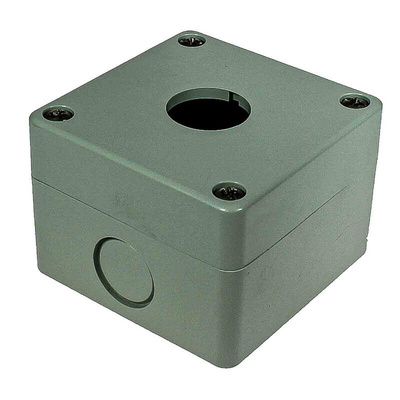

RS PRO Two-Part ABS Push Button Enclosure with 1 Hole, 70 x 70 x 51, Grey

Introducing the range of RS PRO IP65 Push Button ABS Enclosures. These two-part enclosures are a high-quality and versatile enclosure solution, ideal for housing push buttons within industrial environments. The enclosure offers 1 hole moulded for 22mm diameter control switches as a general industry standard and comes pre-assembled to save time for installation of the enclosure. It also features an additional 21mm diameter knockout as an added option to ensure greater versatility should an additional hole be required. Made from highly durable ABS plastic, these enclosures ensure optimum protection from grease, oil and chemical exposure, making these enclosures ultra-protective and reliable for a wide range of applications.

Features and Benefits:

• The enclosure lid and base are moulded in durable and high-strength ABS offering complete protection of electrical assemblies and comes with 1 pre-moulded 22mm diameter hole for control switches or push buttons
• The unit offers an IP65 rating, ensuring that no dust, debris or liquid can enter the enclosure to cause damage to sensitive electrical cables housed within
• The pre-assembled enclosure is secured together with 4 screws and offers an optional 21mm moulded knockout for an additional hole if required
• Polished finish for easy cleaning and keeping the surface dust and debris free
• Can be used in conjunction with RS PRO Mounting Brackets 194-7468
• Available in a wide variety of sizes and colours

Applications:

Push Button Enclosures are units that are designed to accommodate a wide variety of push buttons and control station switches for durable and secure protection for industrial environments. They are often used for the protection of electrical assemblies of buttons, for example when operating machinery and often are compliant to IP, fire resistance and corrosion-resistant, dependant on the environment or application it is being used in. These enclosures are such versatile units for a wide range of applications, they can be wall-mounted if needed and they can be made from a wide variety of materials like aluminium, ABS, fibreglass and much more. The most common applications include:

• Installation terminals
• Electronic components
• Mechanical engineering
• Food industry
• Chemical industry
• Industrial and manufacturing environments

What’s included?

The unit arrives pre-assembled, but consists of:

• Base and Lid of the Enclosure
• 4x Screws

Are there other sizes available?

The RS PRO push button and control station enclosures are available in a range of sizes and colours, dependant on your requirements:

194-7455 70 x 70 x 51 mm Grey 1x 22mm diameter hole
194-7456 70 x 70 x 51 mm Yellow 1x 22mm diameter hole
194-7458 70 x 70 x 74 mm Grey 1x 22mm diameter hole
194-7459 70 x 70 x 74 mm Yellow 1x 22mm diameter hole

RS PRO Datasheet
