STTS22HTR, STMicroelectronics Temperature Sensor, Surface Mount, I2C, 0.5°C, 6 Pins, Датчик температуры

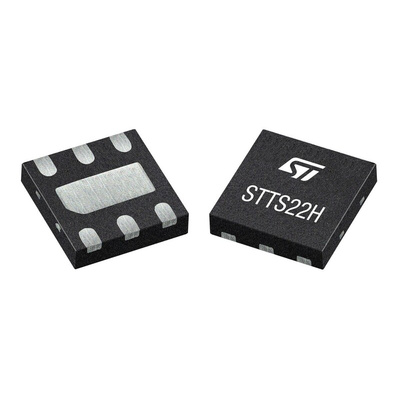

The STTS22H is a band gap temperature sensor coupled with an A/D converter, signal processing logic and an I²C/SMBus 3.0 interface all in a single ASIC. This sensor is housed in a small 2 x 2 x 0.50 mm 6-lead UDFN package with exposed pad down for a better temperature match with the surrounding environment. The STTS22H is factory calibrated and requires no additional calibration efforts on the customer side.

Key features
Integrated high-accuracy temperature sensor
Factory calibrated
One-shot mode for power saving
Electrical specifications
Supply voltage: 1.5 to 3.6 V
I²C, SMBus 3.0 with ALERT (ARA) support
Programmable thresholds with interrupt pin
Supports up to 1 MHz serial clock
Up to 2 I²C/SMBus slave addresses
Ultra-low current: 1.75 μA in one-shot mode
Sensing specifications
Operating temperature -40 °C to +125 °C
Temperature accuracy (max.): ± 0.5 °C (-10 °C to +60 °C)
16-bit temperature data output
Package specifications
UDFN 2.0 x 2.0 x 0.50 mm, 6 leads with exposed pad down

Datasheet STTS22HTR
