RS PRO Single-Sided Stripboard FR-2 454.66 x 119.38 x 1.6mm FR1, Макетная плата

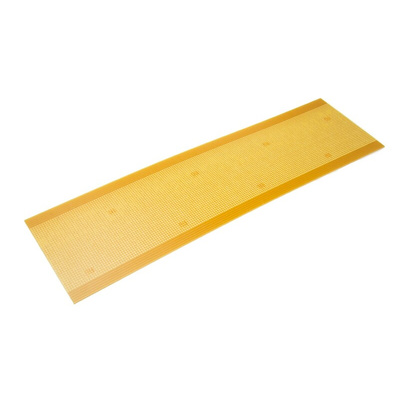

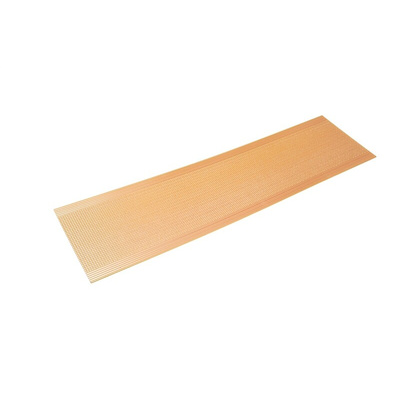

RS PRO Single-Sided Stripboard FR-2 454.66 x 119.38 x 1.6 mm FR1

Looking for a simple prototype mounting board to securely layout and test discrete components or integrated circuits? You can use this RS PRO single-sided stripboard to wire components in devices like amplifiers and other electronic products that use large amounts of current.
Use this stripboard to arrange components so that they are connected by predetermined copper tracks, which you can either cut into the board or create by drilling holes. It's suitable when you need to connect a large number of buses or common signals. It also works well when you use a conventional tag strip or group board.
This product meets Restriction of Hazardous Substances (RoHS) standards, which guarantees that it's made with minimal amounts of any harmful materials. It's also electrostatic discharge (ESD) tested and complies with both international (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007), meaning you can be sure the risk of electrostatic discharge is low.

Features and Benefits

• Synthetic resin bonded paper base material
• Dimensions of 454.66 (length) x 119.38 (width) x 1.6 mm (height)
• FR1 material grade
• Hole diameter of 1.02 mm
• Hole layout of 36 x 179
• Hole pitch of 2.54 x 2.54 mm
• One side
