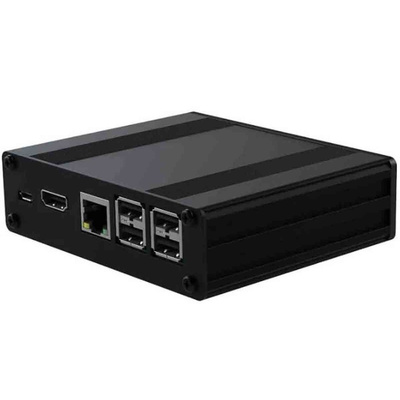

RS PRO Aluminium Case for use with Raspberry Pi in Black

RS PRO Raspberry Pi 3 Enclosure, Black

This lightweight yet durable enclosure from RS PRO is designed to house and protect Raspberry Pi 3 models, boards, electronics and internal components. This easy to assemble Pi box is supplied in kit form and includes all required components to build a robust and high quality Raspberry Pi case.

The kit includes a passive extender board to move the HDMI and micro USB connectors onto the same plane as the Raspberry Pi Ethernet and USB connectors, as well as the required screws, standoffs and plates. The raspberry pi case also features dovetail slots along the external sides, allowing mounting brackets to be installed and mounted to a surface. The components of the RS PRO Raspberry Pi 3 case are manufactured from a combination of nylon, steel, aluminium and acrylic offering a lightweight yet highly durable enclosure with a professional aesthetic. Furthermore, the 3 mm acrylic rear panel allows for communication via Bluetooth and Wi-Fi signals from the Pi3, ensuring the Raspberry Pi performs to a high standard at all times without interference.

Features and benefits

• Complete kit to build a high quality enclosure for Raspberry Pi 3 models


• External sides of the case feature dovetail slots allowing for mounting brackets to be installed


• Lightweight yet highly durable design with an aesthetically pleasing look


• Passive extender board to move the HDMI and Micro USB connectors onto the same plane as the Raspberry Pi Ethernet and USB connectors


• Cut outs for USB, HDMI, Ethernet and more


• Available in Black or Silver

Application

Raspberry Pi cases are a type of enclosure specifically designed to house and protect internal electronics and components for Raspberry Pi builds such as a camera, wiring, PCB (printed circuit boards) and more. Raspberry Pi enclosures also tend to feature cut outs for accommodating USB, HDMI and Ethernet ports.

The RS Pro Industrial Raspberry Pi enclosure comes with passive extender board to move the HDMI and Micro USB connectors onto the same plane as the Raspberry Pi Ethernet and USB connectors. Available in Silver or Black anodised finish. Available with optional mounting lugs.

FAQs

Industrial Raspberry Pi enclosure with passive extender board to move
the HDMI and Micro USB connectors onto the same plane as the
Raspberry Pi Ethernet and USB connectors
The box features dovetail slots down the side which accept a mounting
bracket for surface mounting

What is included?

• 8 x M3x10 Taptite Screws


• 14 x M3x5 Screws


• 4 x 12 mm Standoffs


• 3 x 8 mm Standoffs


• 1 x Aluminium End Plate


• 1 x HDMI Extender PCB


• 1 x Aluminium Carrier Plate


• 1 x Aluminium Extrusion - 86.5 mm long


• 1 x Acrylic End Plate

Does this include a Raspberry Pi?

No, this is just a kit to build the external enclosure to protect and house your Raspberry Pi 3.

What colours are available?

The RS PRO Raspberry Pi 3 enclosure is available in either Black or Silver

• Black: 1951528


• Silver: 1951532

RS PRO Datasheet

Datasheet - PIBB1-1
