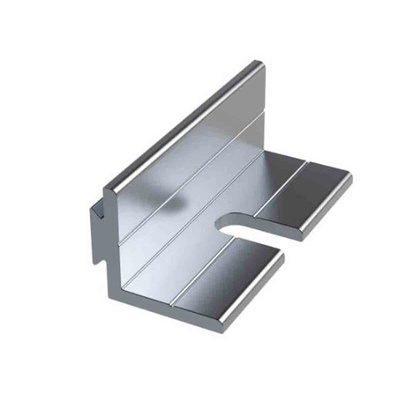

RS PRO Mounting Bracket Lug for Dovetail Extruded Aluminium Enclosures

This range of mounting bracket lugs from RS PRO are designed for fixing RS PRO extruded dovetail aluminium enclosures to surfaces such as walls, panels, vehicle bulkheads and more. The brackets slide into any external dovetail feature on the case, allowing you to quickly and easily secure the enclosure to a surface. These mounting brackets are manufactured from aluminium with a silver anodised finish, offering a lightweight yet durable bracket with excellent corrosion resistance.

Features and benefits

• Manufactured from aluminium with a silver anodised finish offering excellent durability and corrosion resistance


• Available as either 40 mm or 80 mm


• Ideal for mounting RS PRO aluminium enclosures to surfaces such as walls and panels


• Quick and easy to install

Application

Mounting brackets are a quick and easy solution for fixing enclosures to various surfaces. The simple design allows them to easily slide into external dovetail extrusions, allowing you to fix them to the enclosure. Mounting brackets can be used with enclosures in a wide range of applications including:

• Electrical


• Button switching elements


• Telecommunication


• Network Junction boxes


• Mechanical and automation

The RS Pro aluminium extruded mounting bracket for fixing extruded dovetail enclosures to walls, panels,
vehicle bulkheads etc. Bracket slides into any external dovetail feature on the case. Available in silver anodised finish.

What sizes are available?

Aluminium extruded mounting bracket for fixing extruded dovetail enclosures to walls, panels, vehicle bulkheads etc.

What enclosures are these compatible with?

• 1951538 - 40mm Black + 2 x End Plates + 8 Screws Kitted


• 1951534 - 80mm Black + 2 x End Plates + 8 Screws Kitted


• 1951539 - 40mm Silver + 2 x End Plates + 8 Screws Kitted


• 1951540 - 80mm Silver + 2 x End Plates + 8 Screws Kitted


• 1951520 - 80mm Black + 2 x End Plates + 8 Screws Kitted


• 1951542 - 80mm Silver + 2 x End Plates + 8 Screws Kitted


• 1951525 - 80mm Black + 2 x End Plates + 8 Screws Kitted


• 1951545 - 80mm Silver + 2 x End Plates + 8 Screws Kitted


• 1951527 - 80mm Black + 2 x End Plates + 8 Screws Kitted


• 1951548 - 80mm Silver + 2 x End Plates + 8 Screws Kitted

RS PRO Datasheet
