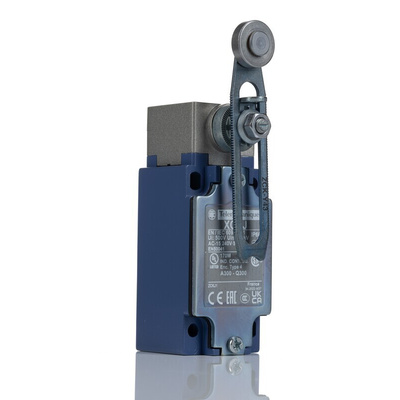

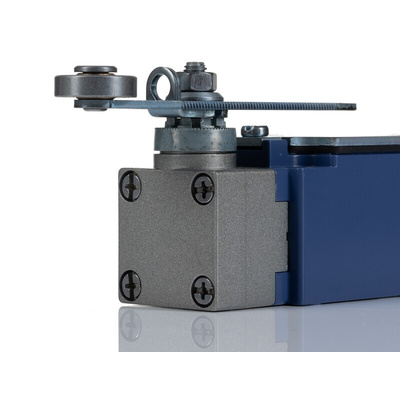

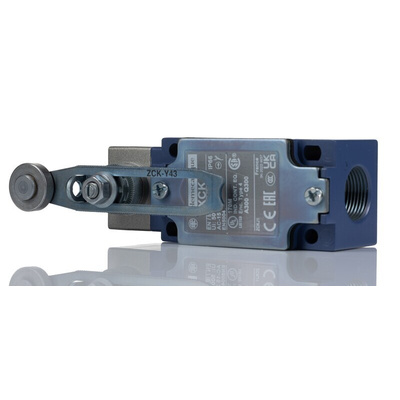

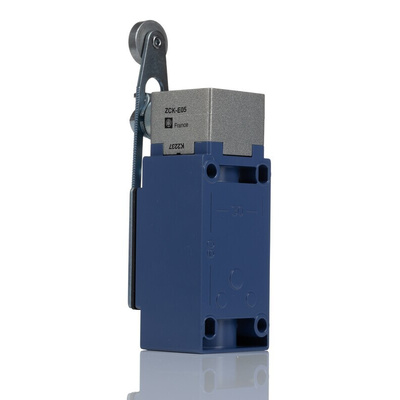

XCKJ10543, Telemecanique Sensors XCKJ Series Roller Lever Limit Switch, 1NC/1NO, IP66, DPST, Zamak Zinc Alloy Housing, 240V ac

Telemecanique Sensors Limit Switch, 2 Poles, Variable Length Roller Lever - XCKJ Series - XCKJ10543

Automatically control mechanical equipment with this limit switch from Telemecanique Sensors. Its durable steel roller lever is actuated by a 30° cam to start, stop or slow down a device. The unit has two snap-action contacts, one normally open and one normally closed, so it's a smart option for safety functions. As it's entry-tapped for a PG13 cable gland, installation's a breeze. With a mechanical durability of 30,000,000 cycles, you can count on this device to get the job done over a long period.

Features & Benefits

• IP66 rating means it's protected against dust and high-pressure jets of water
• Wide operating temperature range between -25°C and +70°C to suit industrial environments
• Low weight of 485g means it won't put strain on your system
• Compact dimensions of 40 (width) x 77 (height) x 44mm (depth) for use in tight spaces

Applications

• Production lines
• Manufacturing processes
• Plant machinery
• Engineering works

Does this limit switch have short-circuit protection?

Yes, it's protected against short circuits by a 10A gG cartridge fuse. As soon as it detects an overcurrent, the device will trip and break the attached circuit, preventing injury and machine damage.

Datasheet XCKJ10543

Product Environmental Profile
