XS7C1A1PAL01M12, Telemecanique Sensors Inductive Block-Style Proximity Sensor, 12 mm Detection, PNP Output, 10 → 36 V dc, 12, Индуктивный датчик приближения

Telemecanique Inductive Proximity Sensors XS Flat form (block).

Telemecanique Inductive Proximity Sensors OsiSense XS series allow you to detect all types of objects in various applications providing high detection performance for metal objects. This inductive sensor range with industry recognised high performing technology provide non-contact detection of material up to 20 mm. Inductive proximity sensors are available in flush and non-flush models (shielded and non-shielded).

Styles Available.

• Flush and Non-Flush (shielded and non-shielded).


• Short and long body.


• PNP and NPN versions (compatible with PLCs and controllers).


• 3 Wire DC, AC or AC/DC versions (available to be installed as a limit switch).

How do they work and where can I use them?

Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.

Applications.

• Railway, Mobile equipment, Lifts and escalators, Hoisting.


• Material handling, conveying, logistics.


• Material working, machine tools, Packaging.


• Food and beverage, Pharmaceutical, Robotics.

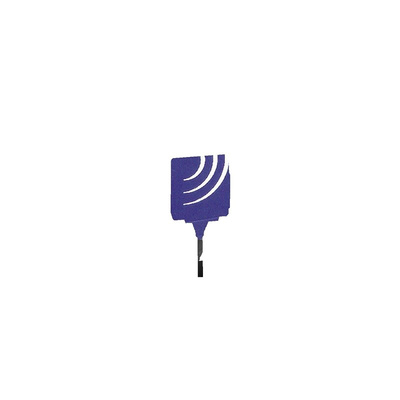

XS7C1A1PAL01M12 General Purpose Inductive Proximity Sensor (XS).

• XS7 Sensor.


• General Purpose.


• Flat form (block) 40 x 40 x 15.


• Size 15 mm.


• Fixed body, Flush mountable.


• Plastic (PBT), PBT Front.


• Discrete signal, 3-wire.


• Output 1 NO, DC circuit, PNP.


• 4 pins M12 remote male connector, (0.15 m cable length).


• [Us] rated supply voltage 12 to 24 V dc.


• Front detection.


• 1 LED, yellow output.


• Depth 15 mm.


• Height 40 mm.


• Width 40 mm.


• IP67 double insulation conforming to IEC 60529.


• CE marked.

Certificates.

• UL, CSA, C-Tick, Ecolab.
